06FLZ-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

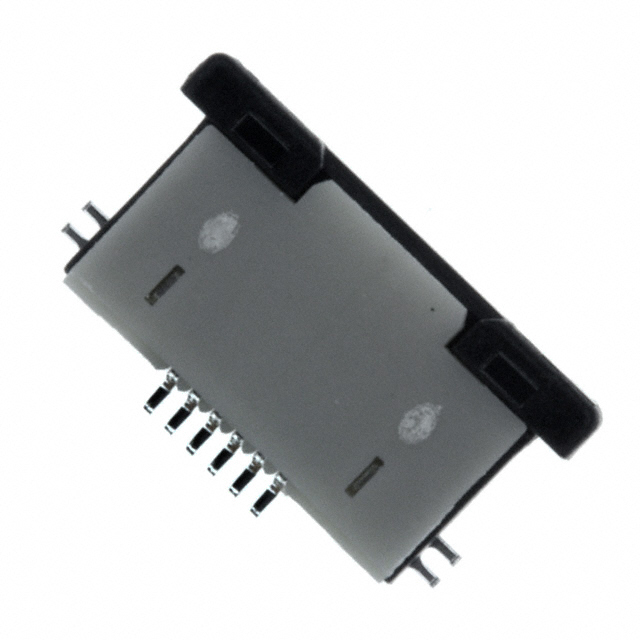

CONN FFC FPC TOP 6POS 0.5MM R/A
| Part | Flat Flex Type | Contact Material | Mounting Type | Actuator Color | Operating Temperature [Min] | Operating Temperature [Max] | FFC, FCB Thickness | Material Flammability Rating | Pitch [x] | Pitch [x] | Current Rating (Amps) | Features | Termination | Actuator Material | Housing Color | Cable End Type | Locking Feature | Connector/Contact Type | Height Above Board | Height Above Board | Number of Positions | Voltage Rating | Housing Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | FFC FPC | Phosphor Bronze | Surface Mount Right Angle | Black | -25 °C | 85 °C | 0.3 mm | UL94 V-0 | 0.5 mm | 0.02 in | 0.5 A | Solder Retention Zero Insertion Force (ZIF) | Solder | Polyamide (PA6T) Nylon 6T | Gray | Tapered | Slide Lock | Contacts Top | 0.079 in | 2 mm | 6 | 50 V | Polyamide (PA6T) Nylon 6T | Tin |
