EFC1748 Series
Manufacturer: Delta Electronics
Beta
⌘K

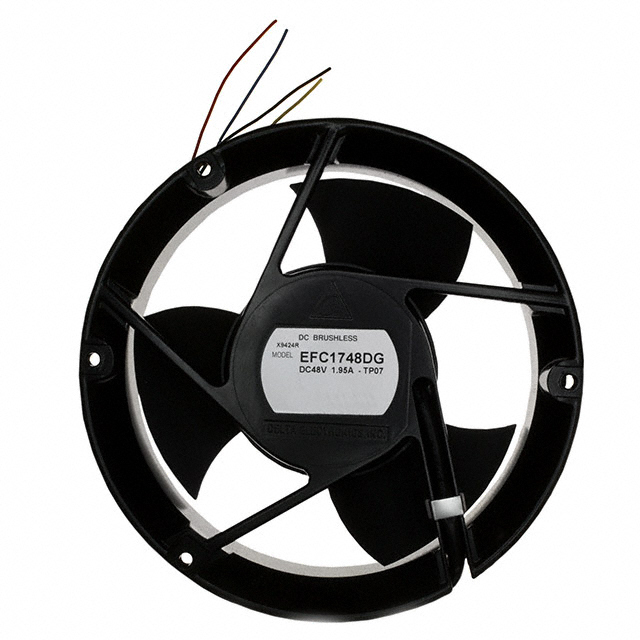

FAN AXIAL 172X50.8MM 48VDC WIRE
| Part | Lifetime @ Temp. | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Material - Blade | Weight | Weight | Power (Watts) | Noise | Fan Type | RPM | Voltage - Rated | Width [y] | Size / Dimension [diameter] | Size / Dimension | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Static Pressure | Static Pressure | Termination | Features | Approval Agency | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Aluminum | 53 VDC | 28 V | 1.23 A | Plastic | 861.8 g | 1.9 lbs | 59 W | 63.4 dB(A) | Tubeaxial | 5500 RPM | 48 VDC | 50.8 mm | 172 mm | Round | 70 °C | -10 °C | Ball | 441.1 Pa | 1.771 in H2O | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CE CSA UL VDE | 415.7 CFM | 11.64 m³/min |
