CFS-0500 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Length	Length	Body Material	Electrical Life	Contact Material	Actuator Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Contact Finish	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Actuator Level	Mounting Type	Pitch	Pitch	Current Rating (Amps)	Termination Style

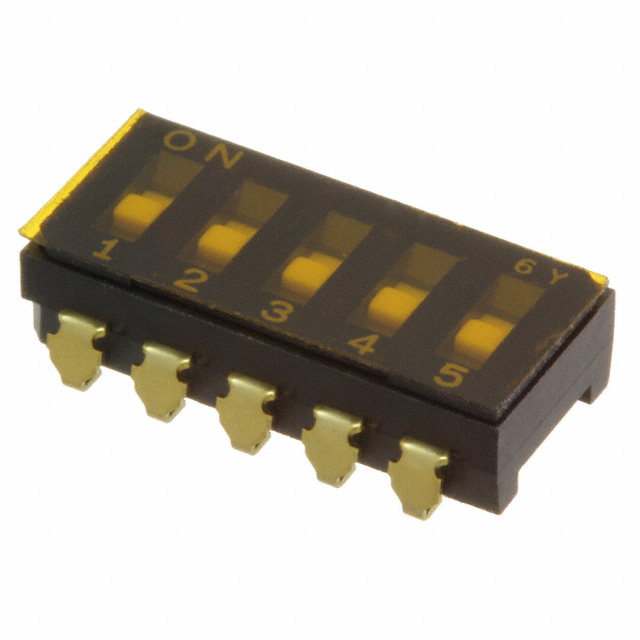

Nidec Components Corporation CFS-0500MA	14.15 mm	0.557 in	Polyphenylene Sulfide (PPS)	1000 Cycles	Copper Alloy	Slide (Standard)	0.154 in	3.9 mm	5	Tape Seal	Gold	SPST	85 °C	-40 C	6 V	Flush Recessed	Surface Mount	2.54 mm	0.1 "	100 mA	J Lead
Nidec Components Corporation CFS-0500TA	14.15 mm	0.557 in	Polyphenylene Sulfide (PPS)	1000 Cycles	Copper Alloy	Slide (Standard)	0.154 in	3.9 mm	5	Tape Seal	Gold	SPST	85 °C	-40 C	6 V	Flush Recessed	Surface Mount	2.54 mm	0.1 "	100 mA	J Lead

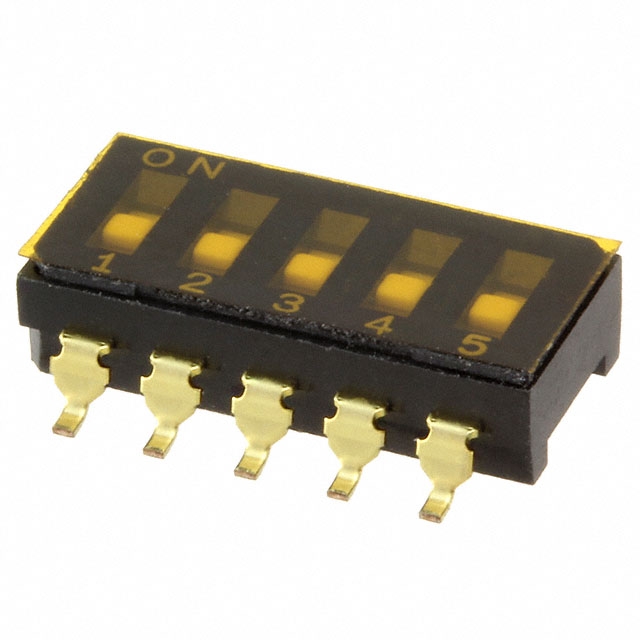

Nidec Components Corporation CFS-0500MB	14.15 mm	0.557 in	Polyphenylene Sulfide (PPS)	1000 Cycles	Copper Alloy	Slide (Standard)	0.146 in	3.7 mm	5	Tape Seal	Gold	SPST	85 °C	-40 C	6 V	Flush Recessed	Surface Mount	2.54 mm	0.1 "	100 mA	Gull Wing

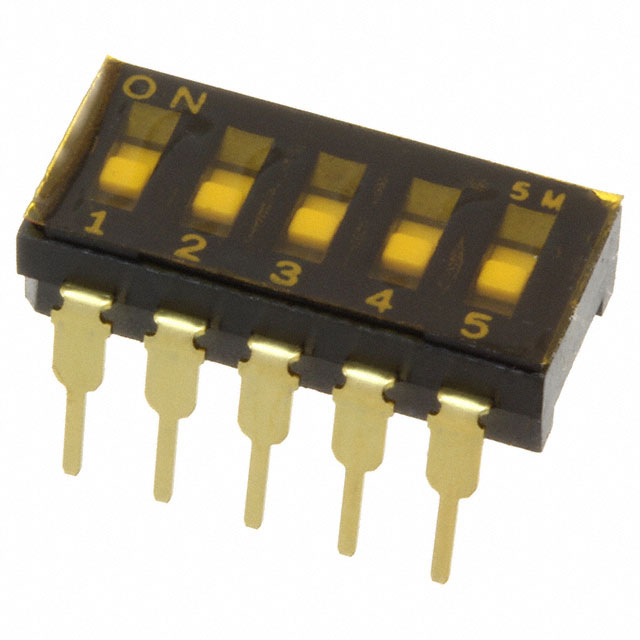

Nidec Components Corporation CFS-0500MC	14.15 mm	0.557 in	Polyphenylene Sulfide (PPS)	1000 Cycles	Copper Alloy	Slide (Standard)	0.177 in	4.5 mm	5	Tape Seal	Gold	SPST	85 °C	-40 C	6 V	Flush Recessed	Through Hole	2.54 mm	0.1 "	100 mA	PC Pin
Nidec Components Corporation CFS-0500TB	14.15 mm	0.557 in	Polyphenylene Sulfide (PPS)	1000 Cycles	Copper Alloy	Slide (Standard)	0.146 in	3.7 mm	5	Tape Seal	Gold	SPST	85 °C	-40 C	6 V	Flush Recessed	Surface Mount	2.54 mm	0.1 "	100 mA	Gull Wing
