2563060 Series
Manufacturer: NorComp Inc.
Beta
⌘K

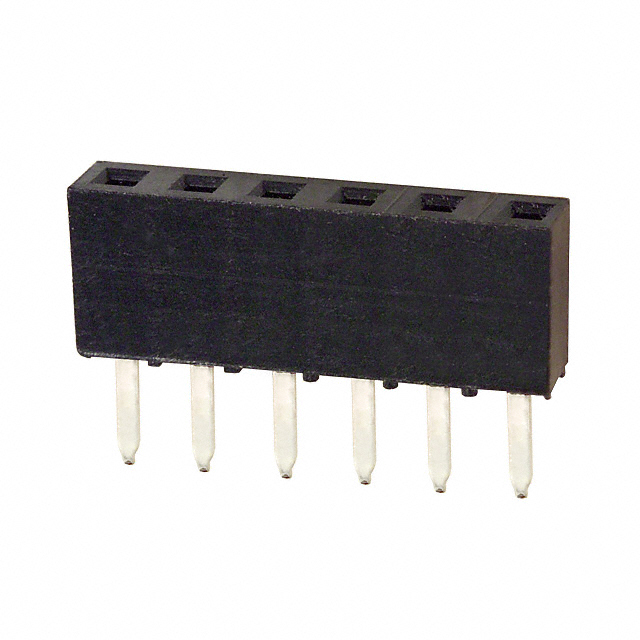

25630601RP2 ROHS COMPLIANT: YES
| Part | Contact Shape | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Contact Type | Insulation Height | Insulation Height | Termination | Number of Rows | Contact Finish - Post | Mounting Type | Connector Type | Contact Finish - Mating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Square | Phosphor Bronze | 2.54 µm | 100 µin | 6 | Female Socket | 4.3 mm | 0.169 " | Solder | 1 | Tin | Through Hole | Receptacle | Gold | All | 2.5 mm | 0.098 in | UL94 V-0 | Flash | -40 C | 105 ░C | Push-Pull | 0.079 " | 2 mm | Black |
