M80-889 Series

Catalog

WIRE-TO-BOARD CONNECTOR, DUAL IN LINE, DATAMATE L-TEK M80 SERIES, CRIMP, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES

Part	Wire Gauge	Color	Wire Type	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Fastening Type	Contact Finish	Mounting Type	Connector Type	Contact Type	Cable Termination	Pitch [x]	Pitch [x]	Number of Positions [custom]
Harwin Inc. M80-8891205	22 AWG	Black	Discrete	2 mm	0.079 in	2	12	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm

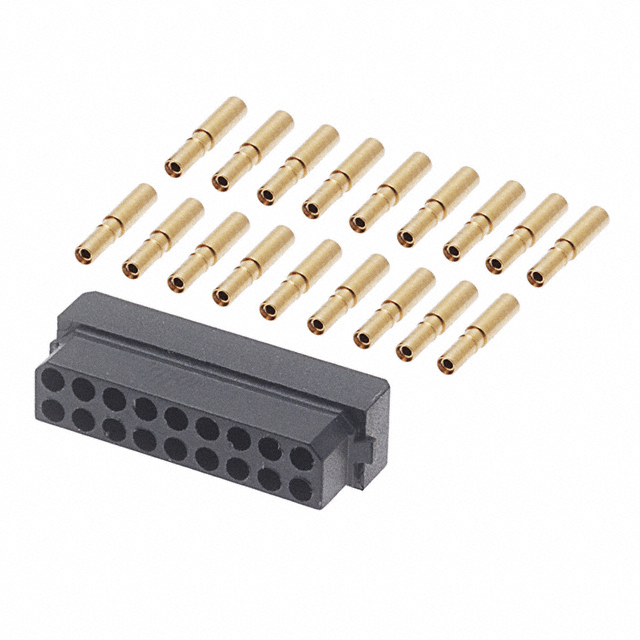

Harwin Inc. M80-8891805	22 AWG	Black	Discrete	2 mm	0.079 in	2	18	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm

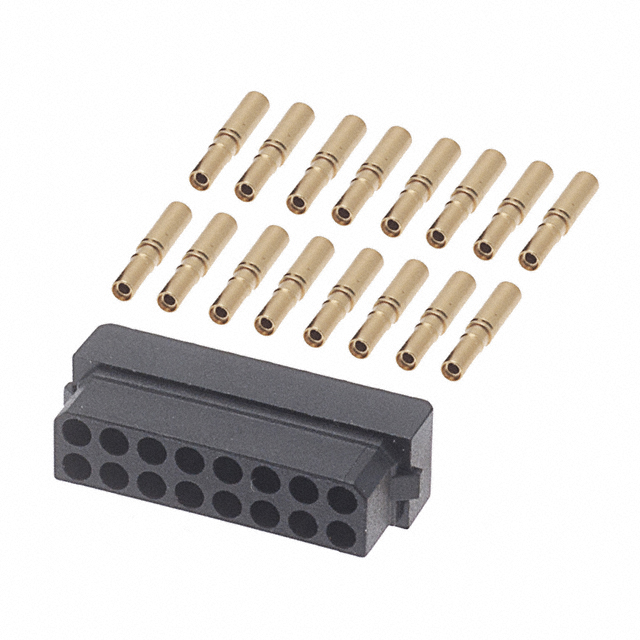

Harwin Inc. M80-8891605	22 AWG	Black	Discrete	2 mm	0.079 in	2	16	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm

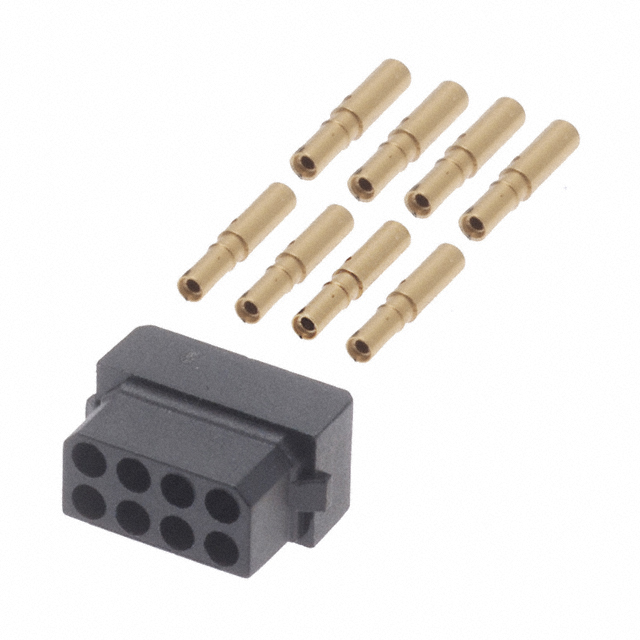

Harwin Inc. M80-8890805	22 AWG	Black	Discrete	2 mm	0.079 in	2	8	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm
Harwin Inc. M80-8892605	22 AWG	Black	Discrete	2 mm	0.079 in	2	26	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm

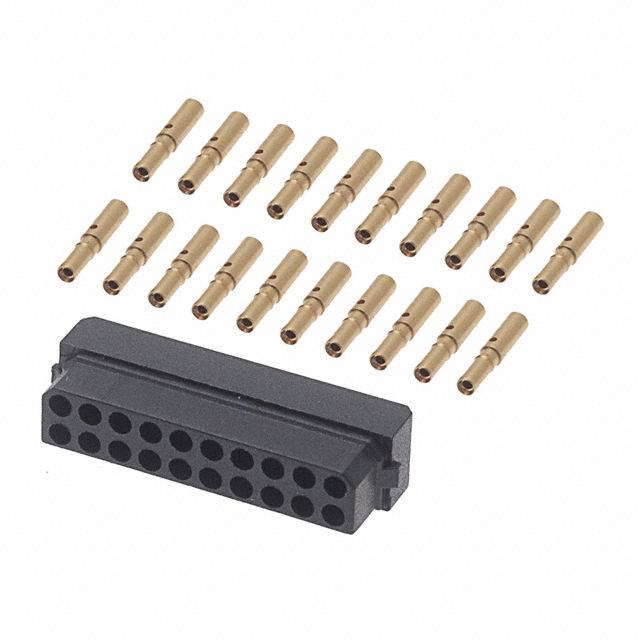

Harwin Inc. M80-8892005	22 AWG	Black	Discrete	2 mm	0.079 in	2	20	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm
Harwin Inc. M80-8891405	22 AWG	Black	Discrete	2 mm	0.079 in	2	14	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm

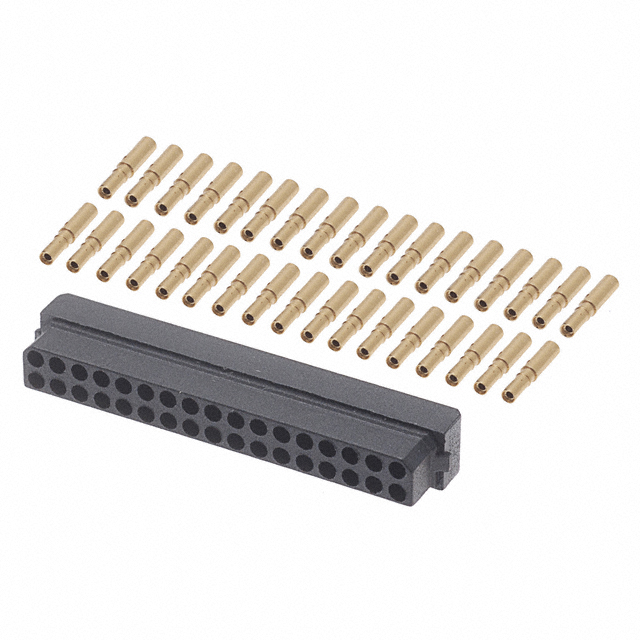

Harwin Inc. M80-8893405	22 AWG	Black	Discrete	2 mm	0.079 in	2		0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm	34
Harwin Inc. M80-8891801	22 AWG	Black	Discrete	2 mm	0.079 in	2	18	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm
Harwin Inc. M80-8892601	22 AWG	Black	Discrete	2 mm	0.079 in	2	26	0.3 Ám	11.8 Áin	Locking Ramp	Gold	Free Hanging (In-Line)	Receptacle	Female Socket	Crimp	0.079 in	2 mm
