0442-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Tail Type	Contact Finish	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0442-0-15-15-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Solder	No Tail	Gold	0.122 in	3.1 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.78 mm	0.07 in	1.02 mm	0.04 in	0.136 in	3.45 mm	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0442-0-15-01-11-02-10-0	-55 C	125 °C	2.54 µm	100 µin	Solder	No Tail	Tin-Lead	0.122 in	3.1 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.77 mm	0.07 in	1.02 mm	0.04 in	0.136 in	3.45 mm	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0442-0-15-01-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Solder	No Tail	Gold	0.122 in	3.1 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.77 mm	0.07 in	1.02 mm	0.04 in	0.136 in	3.45 mm	Beryllium Copper	0.031 in	0.79 mm

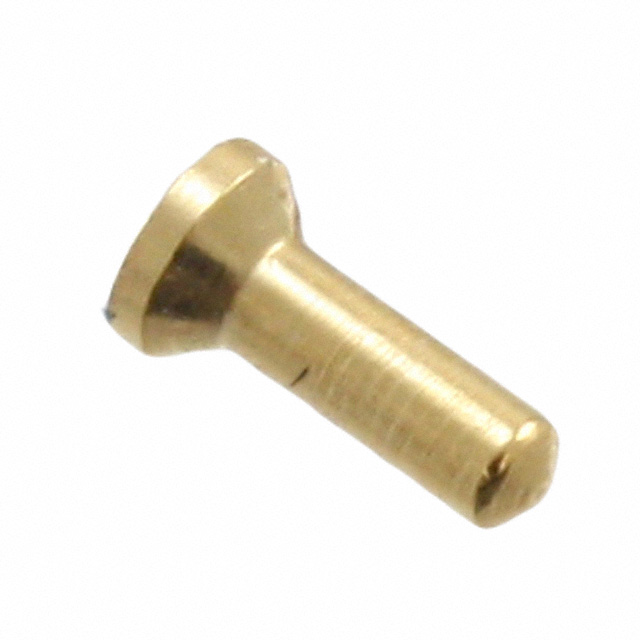

Mill-Max Manufacturing Corp. 0442-0-15-15-11-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	Solder	No Tail	Gold	0.122 in	3.1 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.77 mm	0.07 in	1.02 mm	0.04 in	0.136 in	3.45 mm	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0442-0-15-80-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	Solder	No Tail	Gold	0.122 in	3.1 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	1.78 mm	0.07 in	1.02 mm	0.04 in	0.136 in	3.45 mm	Beryllium Copper	0.031 in	0.79 mm
