1216-0 Series

Catalog

CONN PC PIN SQUARE 0.025 GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Terminal Style	Length - Above Flange [x]	Length - Above Flange [x]	Length - Overall [x]	Length - Overall [x]	Length - Below Flange [x]	Length - Below Flange [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Terminal Type	Termination	Contact Finish	Pin Size - Above Flange	Pin Size - Above Flange	Mounting Type	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter
Mill-Max Manufacturing Corp. 1216-0-05-21-00-00-01-0	20 µin	0.51 µm	Single End	0.235 in	5.97 mm	8.51 mm	0.335 in	0.08 "	2.03 mm	1.65 mm	0.065 in	Non-Insulated	PC Pin	Knurled Press-Fit Wire Wrap	Gold	0.025 in	0.64 mm	Through Hole	Brass Alloy	1.42 mm	0.056 "

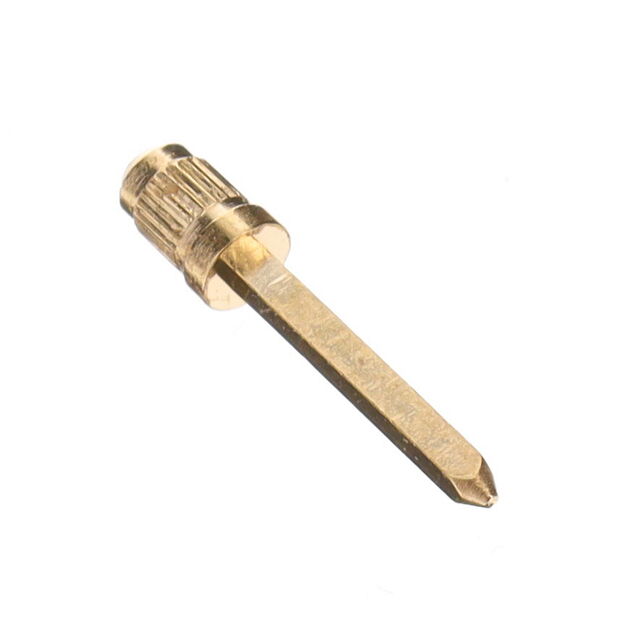

Mill-Max Manufacturing Corp. 1216-0-05-15-00-00-01-0	10 Áin	0.25 Ám	Single End	0.235 in	5.97 mm	8.51 mm	0.335 in	0.08 "	2.03 mm	1.65 mm	0.065 in	Non-Insulated	PC Pin	Knurled Press-Fit Wire Wrap	Gold	0.025 in	0.64 mm	Through Hole	Brass Alloy	1.42 mm	0.056 "
Mill-Max Manufacturing Corp. 1216-0-05-01-00-00-01-0	200 Áin	5.08 Ám	Single End	0.235 in	5.97 mm	8.51 mm	0.335 in	0.08 "	2.03 mm	1.65 mm	0.065 in	Non-Insulated	PC Pin	Knurled Press-Fit Wire Wrap	Tin-Lead	0.025 in	0.64 mm	Through Hole	Brass Alloy	1.42 mm	0.056 "
