0255-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall	Length - Overall	Tail Type	Contact Material	Socket Depth [z]	Socket Depth [z]

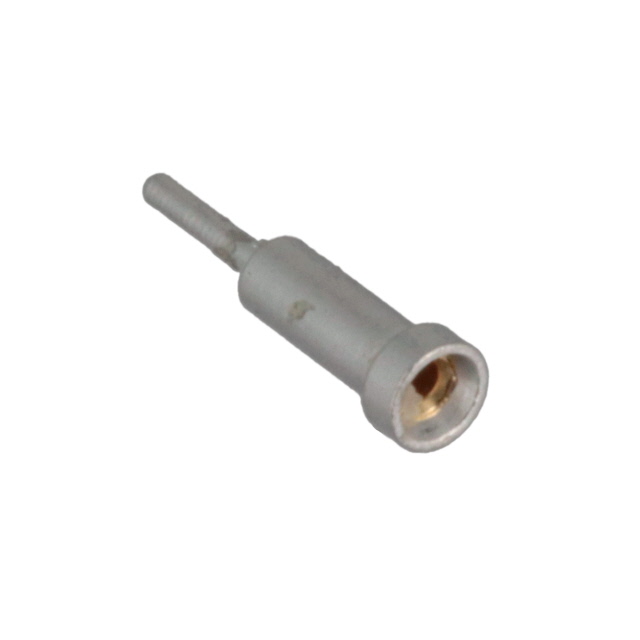

Mill-Max Manufacturing Corp. 0255-0-15-80-30-27-04-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	0.072 "	1.83 mm	Gold	0.56 mm	0.022 in	0.51 mm	0.02 in	7.54 mm	0.297 "	Standard Tail	Beryllium Copper	3.81 mm	0.15 in

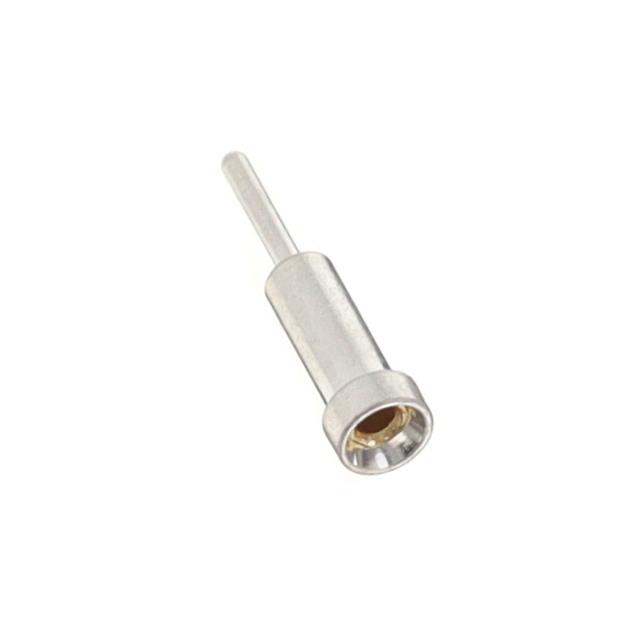

Mill-Max Manufacturing Corp. 0255-0-15-01-30-27-04-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	30 Áin	0.76 Ám	0.072 "	1.83 mm	Gold	0.56 mm	0.022 in	0.51 mm	0.02 in	7.54 mm	0.297 "	Standard Tail	Beryllium Copper	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0255-0-15-01-30-14-04-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	10 Áin	0.25 Ám	0.072 "	1.83 mm	Gold	0.56 mm	0.022 in	0.51 mm	0.02 in	7.54 mm	0.297 "	Standard Tail	Beryllium Copper	3.81 mm	0.15 in

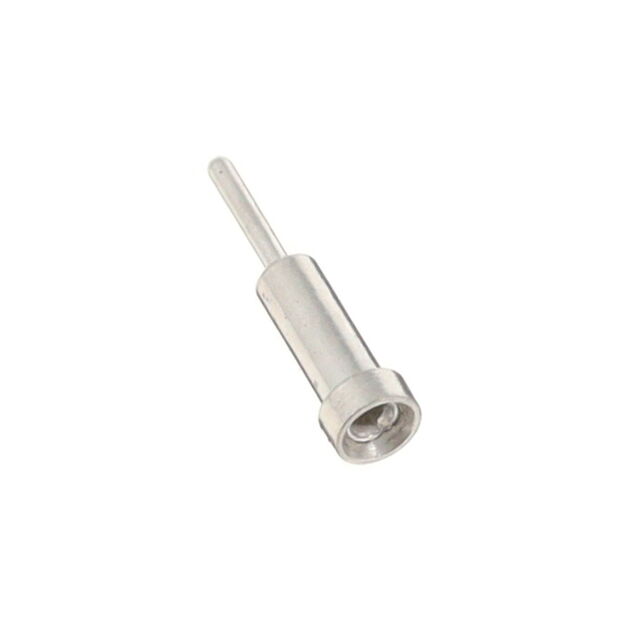

Mill-Max Manufacturing Corp. 0255-0-15-01-30-02-04-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	100 µin	2.54 µm	0.072 "	1.83 mm	Tin-Lead	0.56 mm	0.022 in	0.51 mm	0.02 in	7.54 mm	0.297 "	Standard Tail	Beryllium Copper	3.81 mm	0.15 in
