ESM040W Series

Catalog

LED DRIVER CC AC/DC 28-42V 800MA

Part	Mounting Type	Weight [custom]	Weight [custom]	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Approval Agency	Termination Style	Topology	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Number of Outputs	Features	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Voltage - Output [Max]	Voltage - Output [Min]

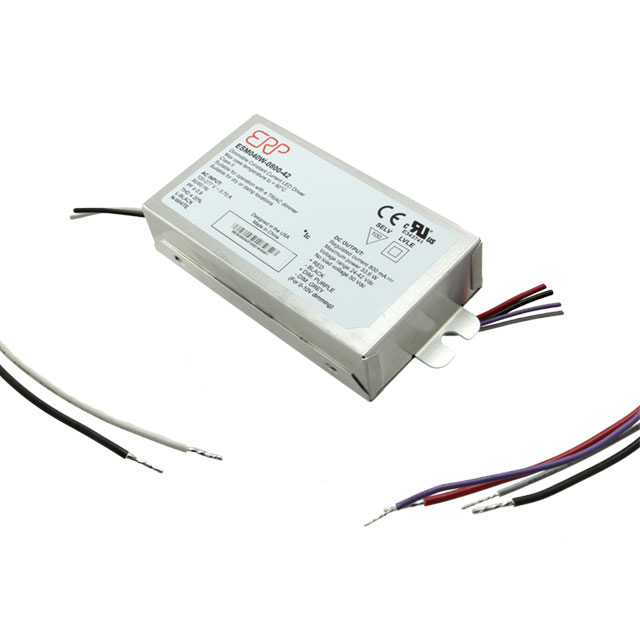

ERP Power, LLC ESM040W-0800-42	Chassis Mount	252 g	0.556 lb	34 W	120 VAC	87 %	CB CE cRUcs cUL FC UL	Wire Leads	AC DC Converter	277 VAC	0.8 A	Constant Current	1	OCP OTP SCP	IP20 NEMA 410	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	-30 ░C	90 °C	ELV TRIAC	42 V	28 V
ERP Power, LLC ESM040W-0940-43	Chassis Mount	252 g	0.556 lb	40 W	120 VAC	87 %	CB CE cRUcs cUL FC UL	Wire Leads	AC DC Converter	277 VAC	940 mA	Constant Current	1	OCP OTP SCP	IP20 IP64 NEMA 410	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	-30 ░C	90 °C	ELV TRIAC	43 V	32 V

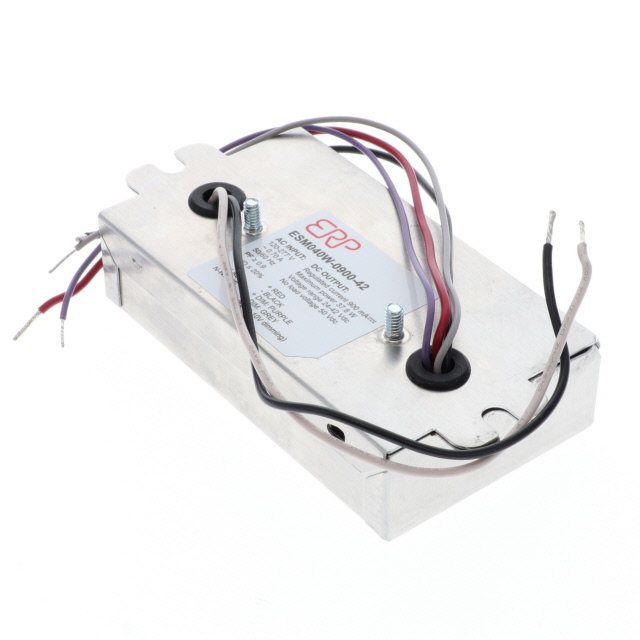

ERP Power, LLC ESM040W-0900-42	Chassis Mount	252 g	0.556 lb	38 Watts	120 VAC	87 %	CB CE cRUcs cUL FC UL	Wire Leads	AC DC Converter	277 VAC	900 mA	Constant Current	1	OCP OTP SCP	IP20 NEMA 410	60.3 mm	106.7 mm	2.37 in	25.2 mm	4.2 "	0.99 "	-30 ░C	90 °C	ELV TRIAC	42 V	28 V
