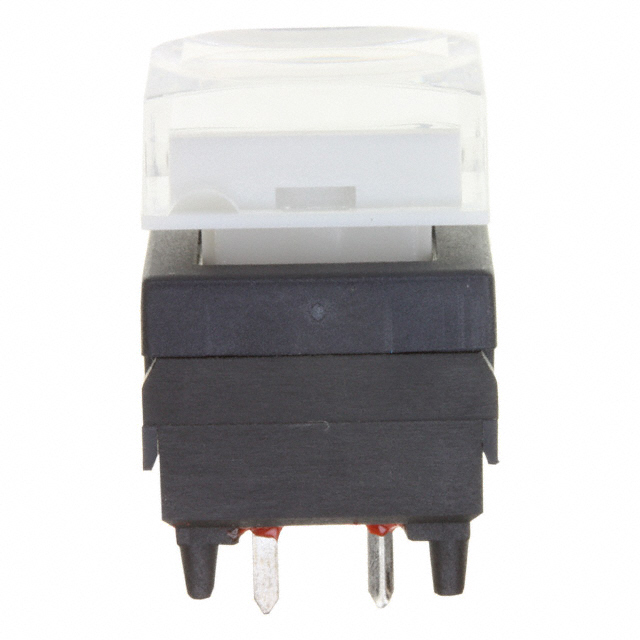

LP6OA1 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH SPST-NO 12MA 12V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Illumination Type, Color	Mounting Type	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Circuit	Type	Switch Function	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]

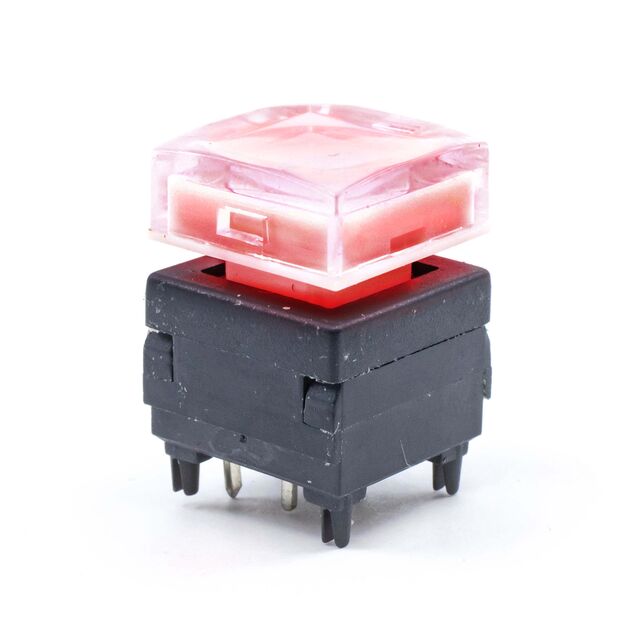

E-Switch LP6OA1ASRW	200000 Cycles	200000 Cycles	12 V	LED Red White	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	1.95 VDC 3.5 VDC	No Marking	-20 ░C	70 °C
E-Switch LP6OA1ASRGB	200000 Cycles	200000 Cycles	12 V	Blue Green LED Red	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	1.7 VDC 1.8 VDC 2.7 VDC		-20 ░C	70 °C

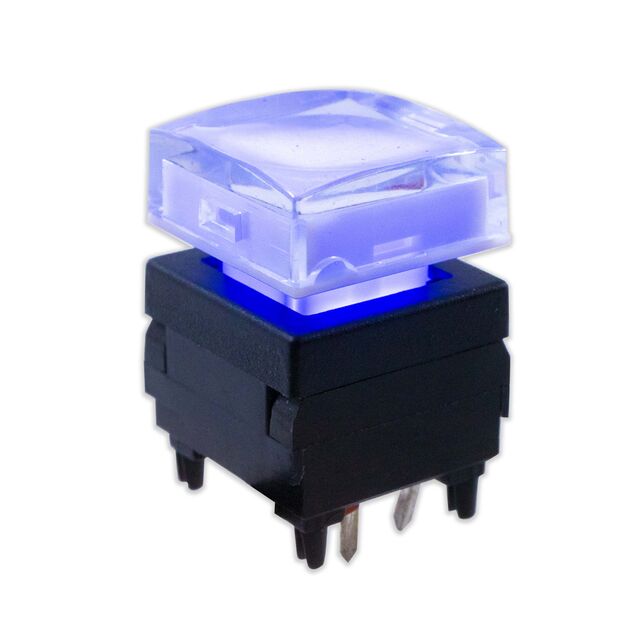

E-Switch LP6OA1ASBB	200000 Cycles	200000 Cycles	12 V	Blue/Blue LED	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	3.3 VDC	No Marking	-20 ░C	70 °C
E-Switch LP6OA1ASYB	200000 Cycles	200000 Cycles	12 V	Blue/Yellow LED	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	1.95 VDC 3.3 VDC	No Marking	-20 ░C	70 °C
E-Switch LP6OA1ASWW	200000 Cycles	200000 Cycles	12 V	LED White/White	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	3.5 VDC	No Marking	-20 ░C	70 °C
E-Switch LP6OA1ASRG	200000 Cycles	200000 Cycles	12 V	Green/Red LED	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square		No Marking	-20 ░C	70 °C	2 VDC	1.95 VDC
E-Switch LP6OA1ASRY	200000 Cycles	200000 Cycles	12 V	LED Red Yellow	Through Hole	Clear	PC Pin	12 mA	SPST-NO	Illuminated Standard	Off-Mom	Button Square	1.95 VDC	No Marking	-20 ░C	70 °C
