2P Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 12P SOLDER CUP
| Part | Shell Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Insert Material | Color | Orientation | Shell Size - Insert | Contact Finish - Mating | Mounting Feature | Shielding | Number of Positions | Connector Type | Fastening Type | Mounting Type | Applications | Current Rating (Amps) | Backshell Material, Plating | Features | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Contact Type | Contact Shape | Note | Note | Type | Orientation [custom] | Contact Size | Termination | For Use With/Related Products | Accessory Type | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M12 | Gold | Bulkhead - Rear Side Nut | Unshielded | 12 | Receptacle Female Sockets | Detent Lock Push-Pull | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | 7 A | |||||||||||||||||
LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M16 | Gold | Unshielded | 16 | Receptacle Female Sockets | Detent Lock Push-Pull | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 6 A | Polysulfone (PSU) | Backshell | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | ||||||||||||
Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M10 | Gold | Unshielded | 10 | Plug Male Pins | Detent Lock Push-Pull | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 8 A | Polysulfone (PSU) | Backshell | 7.3 mm | 0.362 in | 0.287 in | 9.2 mm | |||||||||||||

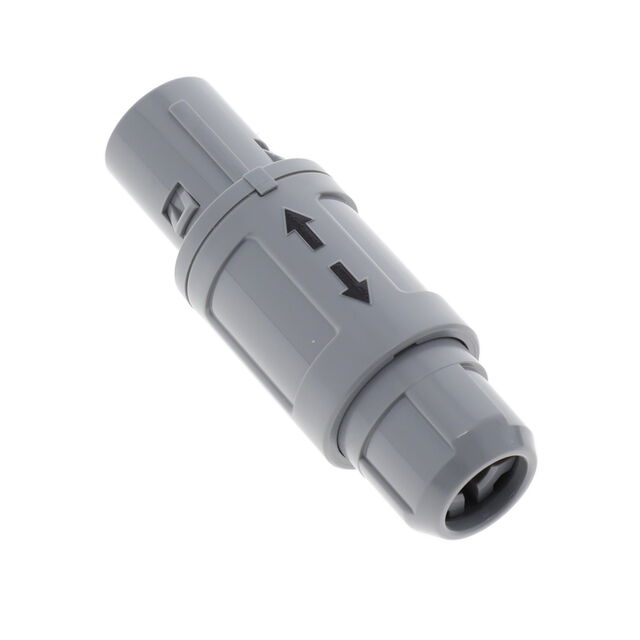

 LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M26 | Gold | Unshielded | 26 | Plug Male Pins | Detent Lock Push-Pull | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 2 A | Polysulfone (PSU) | Backshell | 3.2 mm | 0.205 in | 0.126 in | 5.2 mm | ||||||||||||
 LEMO | IP50 - Dust Protected | M16 | 16 | Insert | Crimp | Circular | Insert Only | For Male Pins | G | 0.7 mm | |||||||||||||||||||||||||
 LEMO | |||||||||||||||||||||||||||||||||||
 LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M16 | Gold | Front and Rear Side Nut | Unshielded | 16 | Receptacle Female Sockets | Detent Lock Push-Pull | Panel Mount Right Angle Through Hole | Automotive Industrial Medical Testing Equipment & Measurement | 6 A | Solder | ||||||||||||||||
 LEMO | Gray | GMA.2B Strain Relief | Nut | Polyetherimide (PEI) | |||||||||||||||||||||||||||||||

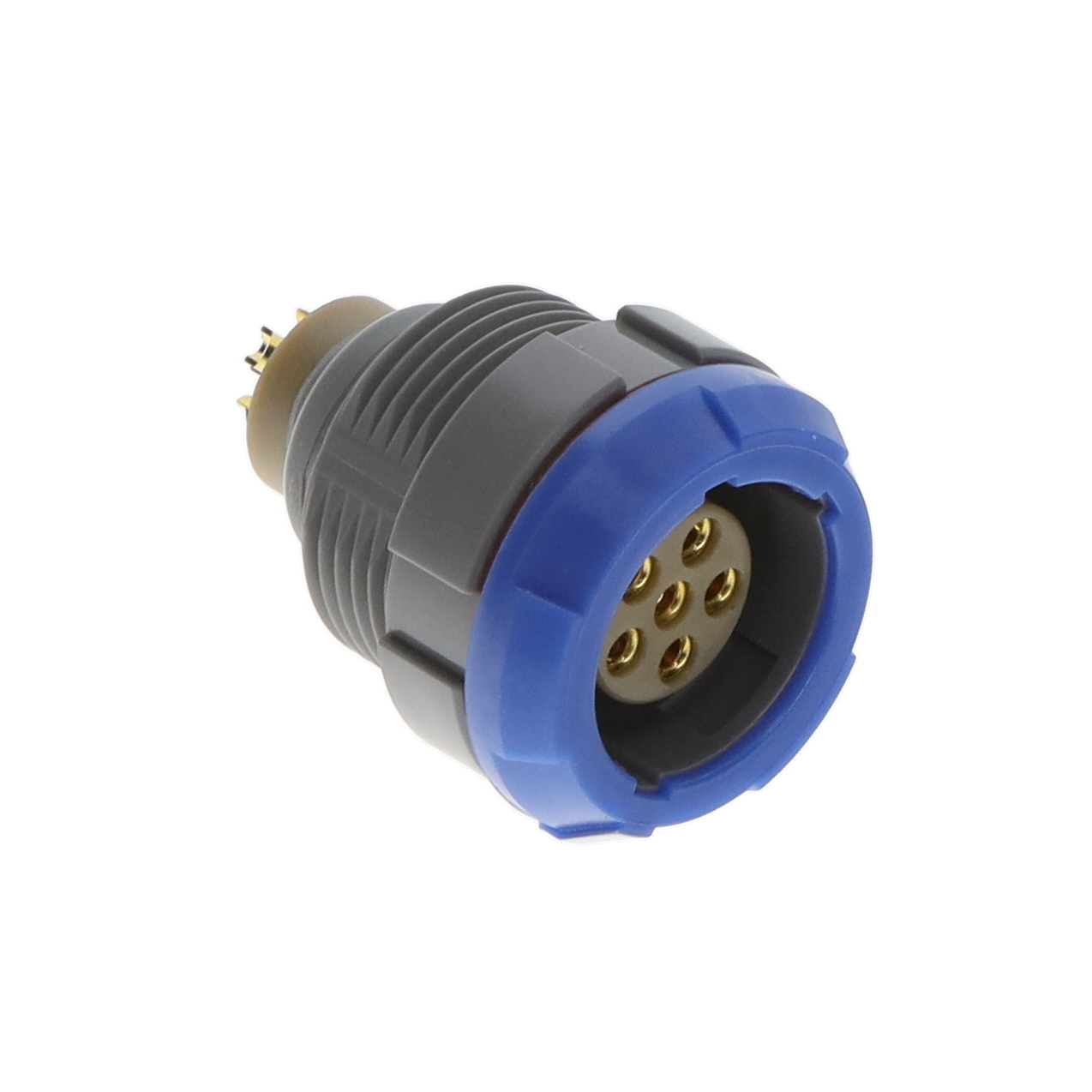

 LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP66 - Dust Tight Water Resistant | Polyetheretherketone (PEEK) | Blue Gray | B | M06 | Gold | Bulkhead - Rear Side Nut | Unshielded | 6 | Receptacle Female Sockets | Detent Lock Push-Pull | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | 12 Amps | |||||||||||||||||
LEMO | Polysulfone (PSU) | Plastic | 150 °C | -50 °C | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | B | M32 | Gold | Unshielded | Plug Male Pins | Detent Lock Push-Pull | Free Hanging (In-Line) | Automotive Industrial Medical Testing Equipment & Measurement | 1.5 A | Polysulfone (PSU) | Backshell | 7.3 mm | 0.362 in | 0.287 in | 9.2 mm |
