WR-120P Series

Catalog

CONN PLUG 120POS R/A SMD GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Connector Type	Number of Positions	Pitch	Pitch	Mated Stacking Heights	Height Above Board	Height Above Board

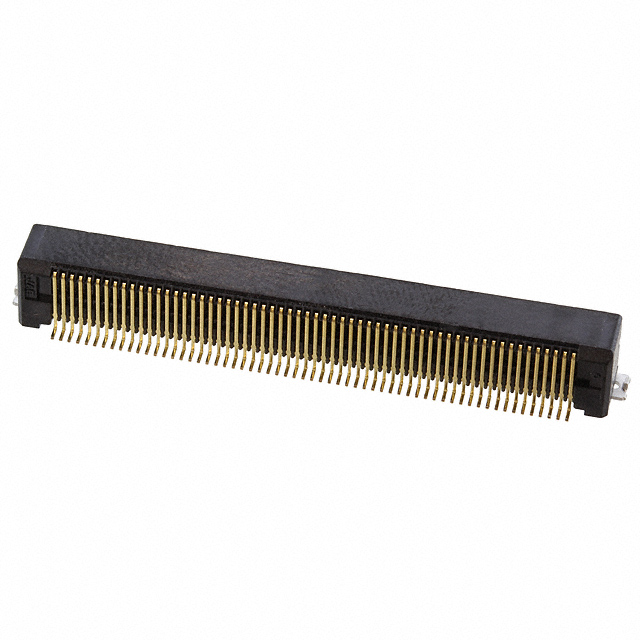

JAE Electronics WR-120P-HF-HD-A1E	0.1 Ám	4 Áin	Right Angle Surface Mount	Solder Retention	Gold	4.7 mm	0.185 in	2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm

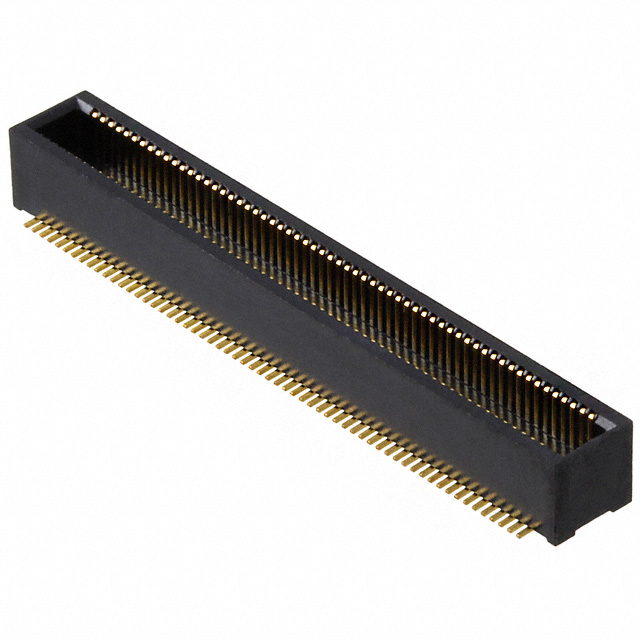

JAE Electronics WR-120P-VF50-N1	0.1 Ám	4 Áin	Surface Mount		Gold	4 mm	0.157 in	2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm	5 mm 5.5 mm 8 mm
JAE Electronics WR-120P-HF-HD-A1E-R1200	0.1 Ám	4 Áin	Right Angle Surface Mount	Solder Retention	Gold	4.7 mm	0.185 in	2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm

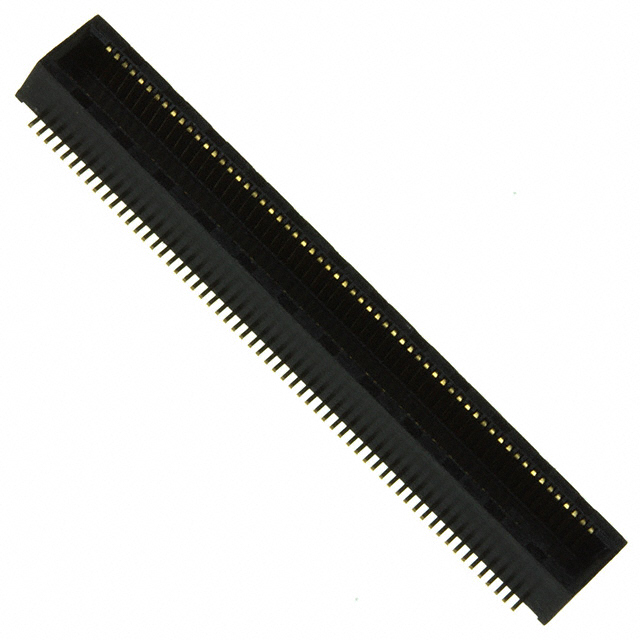

JAE Electronics WR-120PB-VF-N1	0.1 Ám	4 Áin	Surface Mount	Board Guide	Gold	3 mm	0.118 in	2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm	4 mm 4.5 mm 7 mm

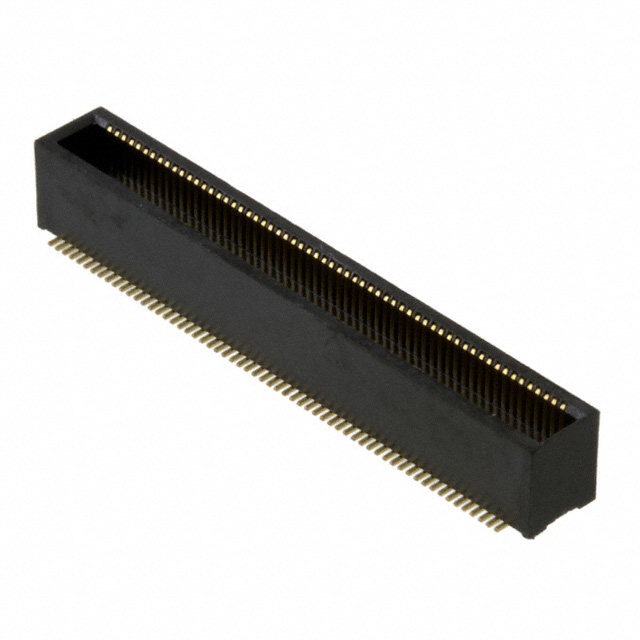

JAE Electronics WR-120PB-VF60-N1	0.1 Ám	4 Áin	Surface Mount	Board Guide	Gold			2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm	6 mm 6.5 mm 9 mm	5 mm	0.197 in
JAE Electronics WR-120PB-VF60-N1-R1200	0.1 Ám	4 Áin	Surface Mount	Board Guide	Gold			2	Plug Outer Shroud Contacts	120	0.02 "	0.5 mm	6 mm 6.5 mm 9 mm	5 mm	0.197 in
