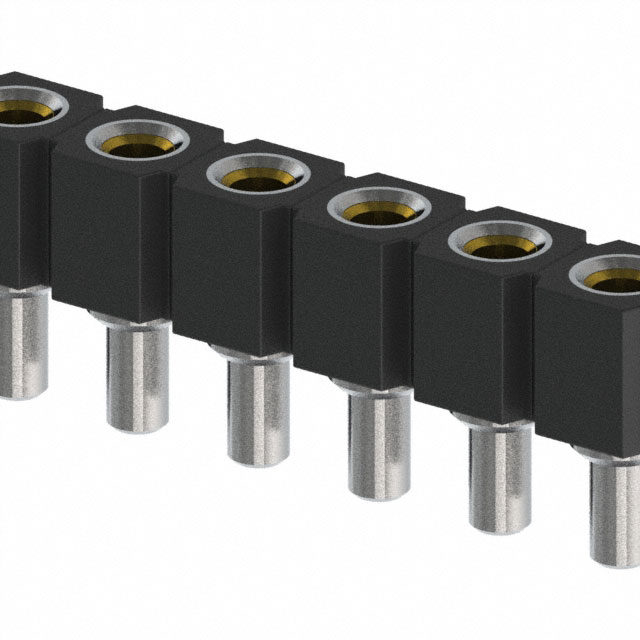

834-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 50POS 0.1 GOLD PCB

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish - Post	Insulation Color	Mounting Type	Termination	Fastening Type	Contact Finish - Mating	Number of Positions	Connector Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 834-47-050-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	50	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-009-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	9	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-027-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	27	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-044-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	44	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-059-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	59	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-017-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold		Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-064-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	64	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-026-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	26	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-040-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	40	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
Mill-Max Manufacturing Corp. 834-47-035-10-001000	Circular	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	Female Socket	2.03 mm	0.08 in	1	Tin	Black	Through Hole	Solder	Push-Pull	Gold	35	Receptacle Pass Through	UL94 V-0	0.13 in	3.3 mm	All	0.1 "	2.54 mm	-55 C	125 °C
