1571634 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

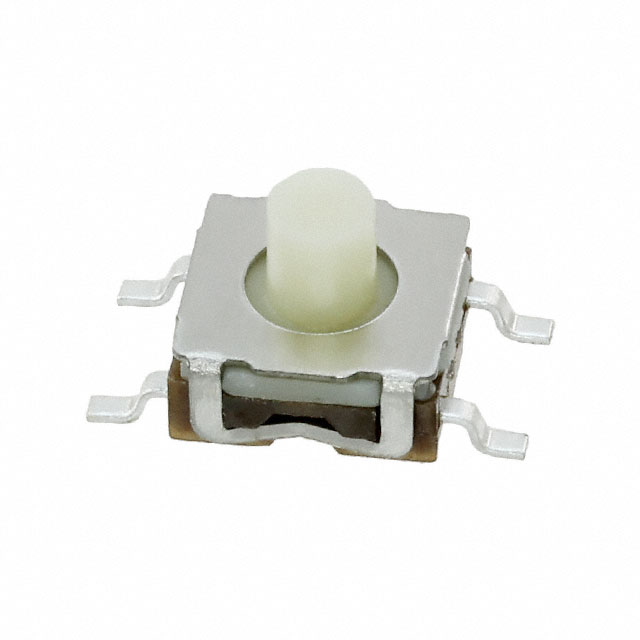

SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Actuator Height off PCB, Vertical | Outline [y] | Outline [x] | Termination Style | Actuator Type | Contact Rating @ Voltage | Actuator Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Illumination | Mechanical Life | Switch Function | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.15 mm | 5 mm | 6.2 mm | 6.2 mm | Gull Wing | Standard | 0.05 A 24 VDC | Silicone Rubber | Surface Mount | -35 °C | 85 °C | SPST-NO | Non-Illuminated | 500000 Cycles | Off-Mom | Top Actuated |
 TE Connectivity Raychem Cable Protection | 0.15 mm | 5 mm | 6.2 mm | 6.2 mm | Gull Wing | Standard | 0.05 A 24 VDC | Silicone Rubber | Surface Mount | -35 °C | 85 °C | SPST-NO | Non-Illuminated | 5000000 Cycles | Off-Mom | Top Actuated |
