2006-120 Series
Manufacturer: WAGO Corporation
Beta
⌘K
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 6 MM², PUSH IN
| Part | Stripping Length [Max] | Stripping Length [Min] | Material - Insulation | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Number of Positions | Color | Termination Style | Type | Number of Levels | Terminal - Width [y] | Voltage - UL | Voltage - IEC | Current - IEC | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

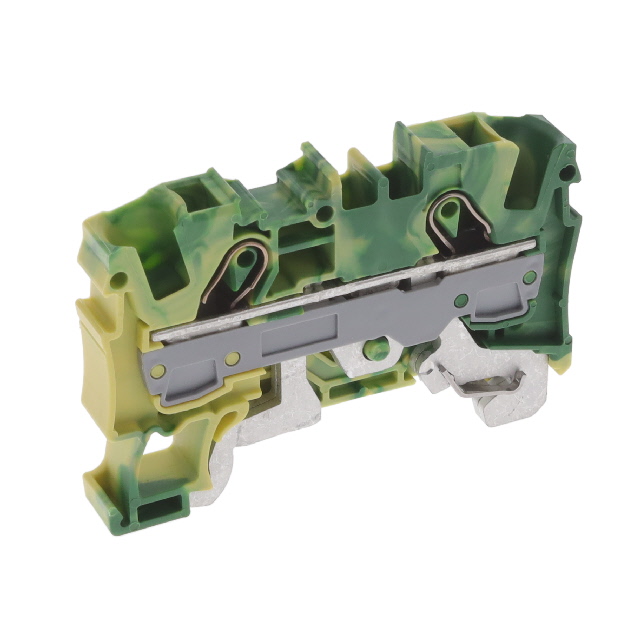

 WAGO Corporation | 15 mm | 13 mm | Nylon 6/6 Polyamide (PA66) | 8 AWG | 14 AWG | 10 mm² | 2.5 mm² | 2 | Green Yellow | Push In Spring | Ground Earth | 1 | 7.5 mm | ||||
 WAGO Corporation | 15 mm | 13 mm | Nylon 6/6 Polyamide (PA66) | 8 AWG | 14 AWG | 10 mm² | 2.5 mm² | 2 | Gray | Push In Spring | Feed Through | 1 | 7.5 mm | 600 V | 800 V | 57 A | 50 A |
