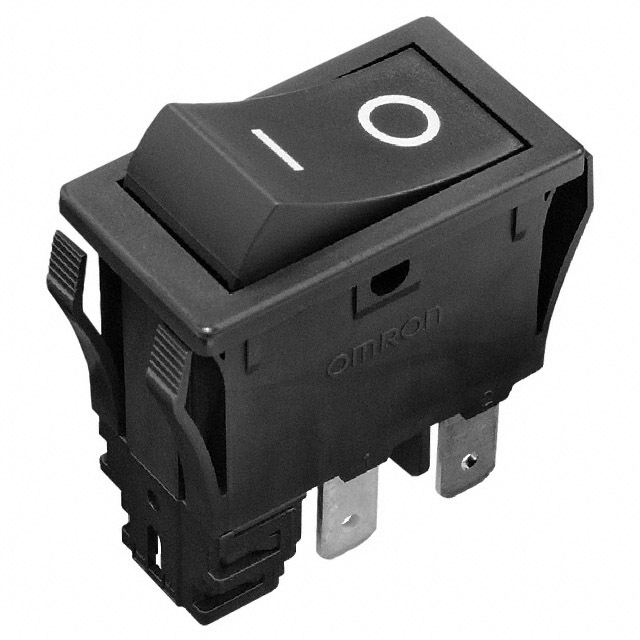

A8GS-C131 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Mechanical Life | Switch Function | Mounting Type | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - AC | Current Rating (Amps) | Color - Actuator/Cap | Termination Style | Actuator Type | Circuit | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10000 Cycles | 30000 Steps | On-Off | Panel Mount Snap-In | Remote Reset Function | 27.7 mm | 15.2 mm | 125 V | 16 A | Black | Connector Solder Lug | Concave (Curved) | DPST | cULus EN UL | 55 °C | -10 °C | O I |
Omron Electronics Inc-EMC Div | 10000 Cycles | 30000 Steps | On-Off | Panel Mount Snap-In | 27.7 mm | 15.2 mm | 125 V | 16 A | Black | Connector Solder Lug | Concave (Curved) | DPST | cULus EN UL | 55 °C | -10 °C | O I |
