NPTC082 Series

Catalog

CONN HDR 16POS 0.1 TIN SMD

Part	Contact Shape	Insulation Material	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Voltage Rating	Fastening Type	Contact Finish - Post	Current Rating (Amps)	Termination	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height	Insulation Color	Contact Type	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Features

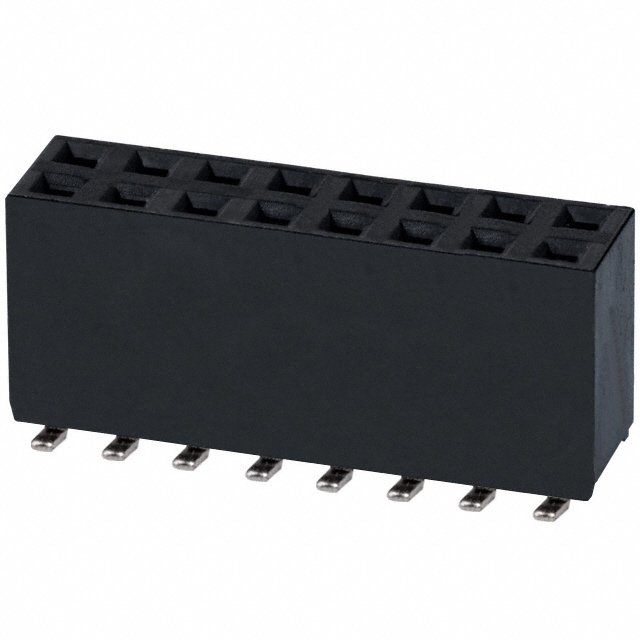

Sullins Connector Solutions NPTC082KFMS-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	0.1 in	2.54 mm	2	250 V	Push-Pull	Tin	3 A	Solder	All	UL94 V-0	16	125 °C	-40 C	0.299 "	7.6 mm	Black	Female Socket	Surface Mount	Header	0.1 "	2.54 mm
Sullins Connector Solutions NPTC082KFMP-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	0.1 in	2.54 mm	2	250 V	Push-Pull	Tin	3 A	Solder	All	UL94 V-0	16	125 °C	-40 C	0.299 "	7.6 mm	Black	Female Socket	Surface Mount	Header	0.1 "	2.54 mm	Board Guide
