SFV35R Series

Catalog

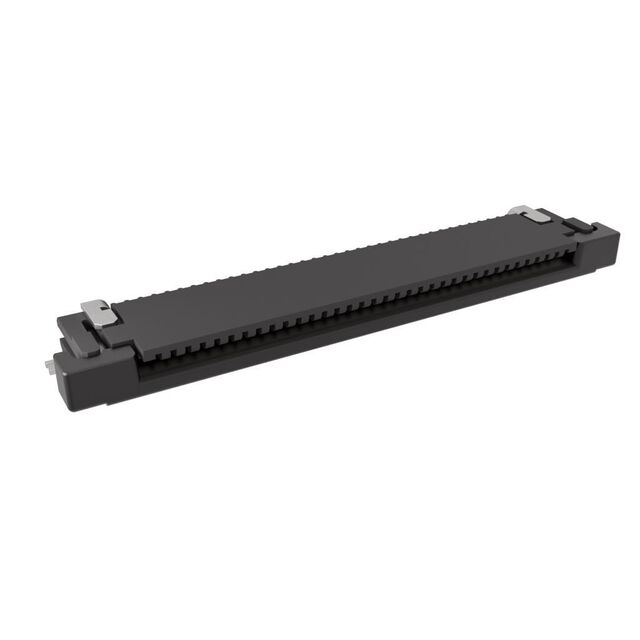

CONN FPC BOTTOM 35POS 0.5MM R/A

Part	Current Rating (Amps)	Locking Feature	Housing Color	Actuator Color	Mating Cycles	Cable End Type	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Features	Material Flammability Rating	Number of Positions	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Material	Pitch	Pitch	Termination	Actuator Material	Connector/Contact Type	FFC, FCB Thickness	Flat Flex Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFV35R-3STBE1HLF	0.5 A	Flip Lock Slide Lock	Black	Black	20	Straight	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Gold	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Bottom	0.3 mm	FPC
Amphenol ICC (FCI) SFV35R-1STBE1HLF	0.5 A	Slide Lock	Black	Black	20	Tapered	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Gold	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Bottom	0.3 mm	FFC FPC
Amphenol ICC (FCI) SFV35R-2STE1HLF	0.5 A	Slide Lock	Black	Black	20	Straight	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Tin	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Top	0.3 mm	FFC FPC
Amphenol ICC (FCI) SFV35R-1STBE5HLF	0.5 A	Slide Lock	Black	Black	20	Straight Tapered	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Gold	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Bottom		FFC FPC	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFV35R-1STE1HLF	0.5 A	Slide Lock	Black	Black	20	Straight	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Tin	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Bottom	0.3 mm	FFC FPC
Amphenol ICC (FCI) SFV35R-4STBE1HLF	0.5 A	Slide Lock	Black	Black	20	Straight	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Gold	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Top	0.3 mm	FPC
Amphenol ICC (FCI) SFV35R-4STE1	0.5 A	Slide Lock	Black	Black	20	Notched	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Tin Alloy	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Top	0.33 mm	FPC
Amphenol ICC (FCI) SFV35R-3STE1HLF	0.5 A	Slide Lock	Black	Black	20	Straight	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Tin	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Bottom	0.3 mm	FPC
Amphenol ICC (FCI) SFV35R-2STBE5HLF	0.5 A	Slide Lock	Black	Black	20	Straight Tapered	0.071 in	1.8 mm	50 V	Solder Retention Zero Insertion Force (ZIF)	UL94 V-0	35	Gold	Phosphor Bronze	-55 C	105 ░C	Right Angle Surface Mount	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.02 "	0.5 mm	Solder	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Contacts Top		FFC FPC	0.3 mm	0.33 mm
