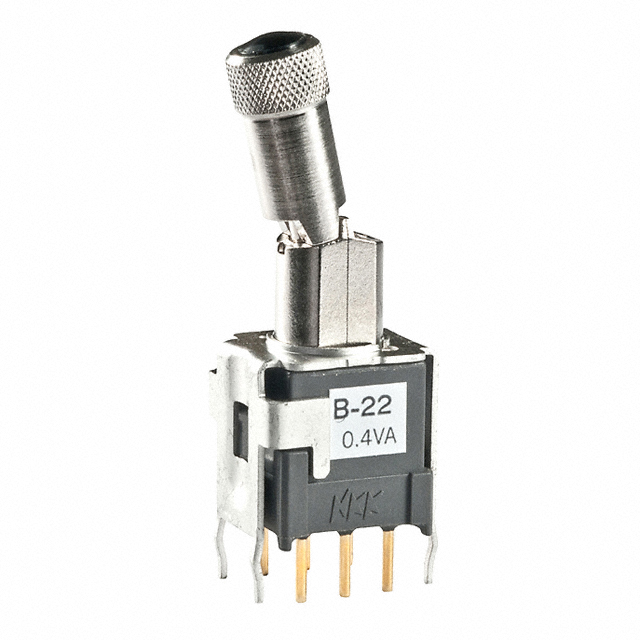

B22L Series
Manufacturer: NKK Switches
Beta
⌘K
PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE
| Part | Electrical Life | Actuator Material | Mounting Type | Switch Function | Circuit | Features | Illumination | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Bushing Thread | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Nickel Plated | Right Angle Through Hole | On-On | DPDT | Epoxy Sealed Terminals | Non-Illuminated | PC Pin | 28 V | 0.4 VA | Unthreaded | 12.5 mm | 85 °C | -30 ░C | Locking Lever | 28 V |
 NKK Switches | 50000 Cycles | Brass Nickel Plated | Through Hole | On-On | DPDT | Epoxy Sealed Terminals | Non-Illuminated | PC Pin | 28 V | 0.4 VA | Unthreaded | 12.5 mm | 85 °C | -30 ░C | Locking Lever | 28 V |
