1871845 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

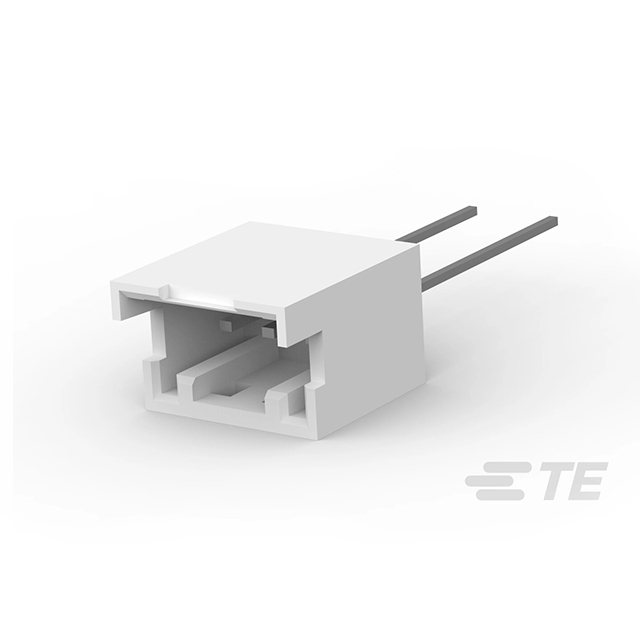

CONN HEADER VERT 3POS 2.5MM
| Part | Material Flammability Rating | Termination | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Material | Shrouding | Contact Shape | Fastening Type | Mounting Type | Contact Finish - Post | Insulation Material | Number of Rows | Connector Type | Style | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Solder | 2 | -30 ░C | 105 ░C | Male Pin | 2.5 mm | 0.098 in | Natural | Brass | Shrouded - 4 Wall | Square | Detent Lock | Through Hole | Tin | Polyamide (PA66) Nylon 6/6 Glass Filled | 1 | Header | Board to Cable/Wire | 50 V | Varies by Wire Gauge |
