32053 Series

Catalog

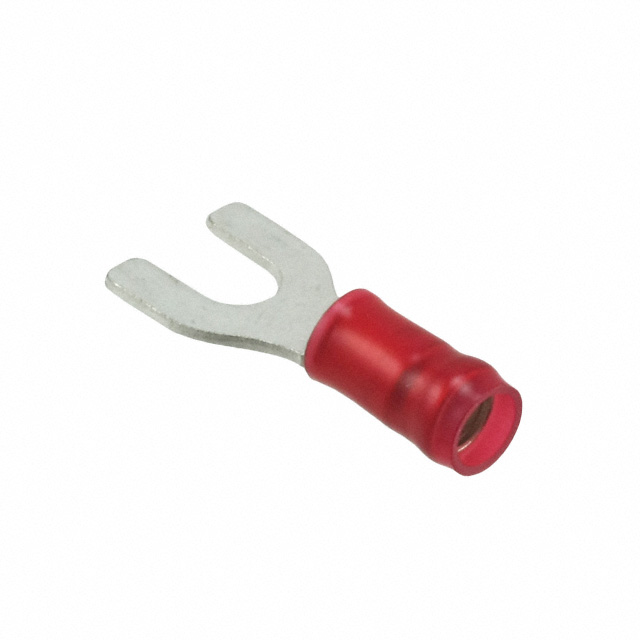

CONN SPADE TERM 16-22AWG #8 RED

Part	Insulation	Length - Termination	Length - Termination	Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Contact Finish	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Features	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Color	Stud/Tab Size
TE Connectivity Raychem Cable Protection 8-32053-1	Insulated	0.404 "	10.26 mm	Crimp	0.14 in	0.105 in	3.56 mm	2.67 mm	0.375 in	9.53 mm	Standard	Tin	Copper	0.171 in	4.34 mm	Nylon Polyamide (PA)	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	0.908 "	23.06 mm	7.92 mm	0.312 in	Red	8 Stud
TE Connectivity Raychem Cable Protection 2-32053-1	Insulated	0.404 "	10.26 mm	Crimp	0.14 in	0.105 in	3.56 mm	2.67 mm	0.375 in	9.53 mm	Standard	Tin	Copper	0.171 in	4.34 mm	Nylon Polyamide (PA)	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	0.908 "	23.06 mm	7.92 mm	0.312 in	Red	8 Stud
