W30B0C-P Series
Manufacturer: ODU
Beta
⌘K

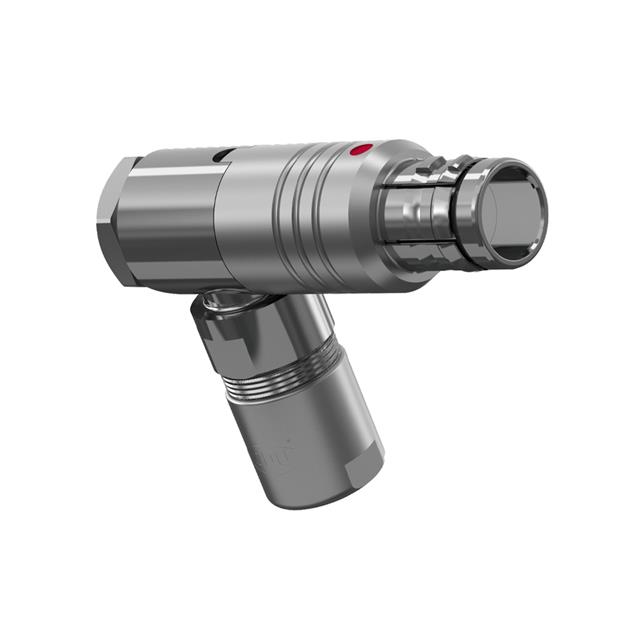

ODU MINI-SNAP RT.ANGLE PLUG, STY
| Part | Voltage Rating | Insert Material | Backshell Material, Plating | Contact Finish - Mating | Number of Positions | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Orientation | Mounting Type | Shell Size - Insert [custom] | Connector Type | Features | Ingress Protection | Primary Material | Contact Material | Applications | Current Rating (Amps) | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Shell Finish | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
200 V | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Gold | 9 | Brass | 120 °C | -40 C | Silver | 0 | Free Hanging (In-Line) Right Angle | 0 | Plug Male Pins | Backshell | IP68 - Dust Tight Waterproof | Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | 4 A | 0.157 in | 4 mm | 0.138 " | 3.5 mm | Chrome over Nickel | Push-Pull | Unshielded | |
300 VDC | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Gold | 4 | Brass | 120 °C | -40 C | Silver | 0 | Free Hanging (In-Line) Right Angle | 0 | Plug Male Pins | Backshell | IP68 - Dust Tight Waterproof | Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | 0.197 in | 5 mm | 0.177 in | 4.5 mm | Chrome over Nickel | Push-Pull | Unshielded | |
200 V | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Gold | 9 | Brass | 120 °C | -40 C | Silver | 0 | Free Hanging (In-Line) Right Angle | 0 | Plug Male Pins | Backshell | IP68 - Dust Tight Waterproof | Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | 4 A | 0.197 in | 5 mm | 0.177 in | 4.5 mm | Chrome over Nickel | Push-Pull | Unshielded |
