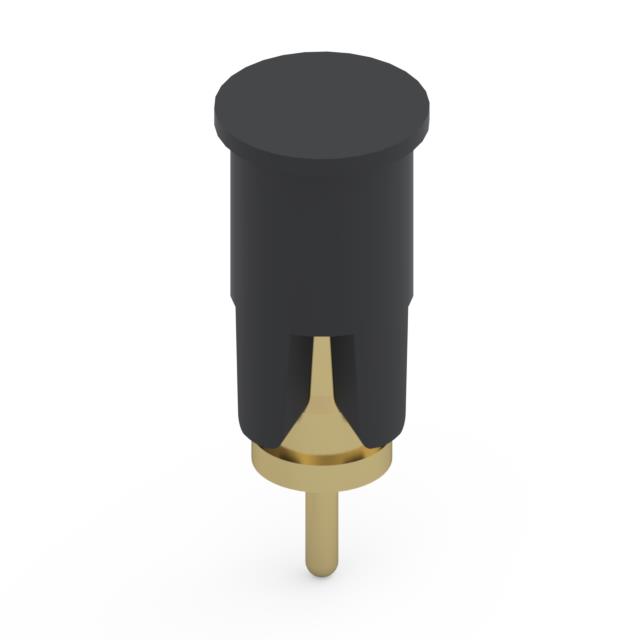

806-22 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONTACT SPRING LOADED SMD GOLD

Part	Material Flammability Rating	Recommended Working Height	Recommended Working Height	Maximum Working Height [Max]	Maximum Working Height [Max]	Mating Cycles	Plunger Size [diameter]	Plunger Size [diameter]	Mounting Type	Pad Layout Dimension	Pad Layout Dimension	Features	Operating Force - Initial	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Force - Mid Compression	Contact Type	Contact Finish	Current Rating (Amps)	Pad Layout Dimension
Mill-Max Manufacturing Corp. 806-22-001-30-010191	UL94 V-0	4.81 mm	0.189 in	0.217 in	5.51 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A
Mill-Max Manufacturing Corp. 806-22-001-30-014191	UL94 V-0	6.79 mm	0.267 in	0.295 in	7.49 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A
Mill-Max Manufacturing Corp. 806-22-001-30-013191	UL94 V-0	6.29 mm	0.248 "	0.275 in	6.99 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A
Mill-Max Manufacturing Corp. 806-22-001-10-004191	UL94 V-0	4.3 mm	0.169 in	0.197 in	5 mm	1000000	0.042 in	1.07 mm	Through Hole		0.072 in	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A	1.83 mm
Mill-Max Manufacturing Corp. 806-22-001-30-003191	UL94 V-0	3.8 mm	0.15 in	0.177 in	4.5 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A
Mill-Max Manufacturing Corp. 806-22-001-30-002191	UL94 V-0	3.44 mm	0.135 in	0.155 in	3.94 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 in 20 µin	0.51 m 0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A

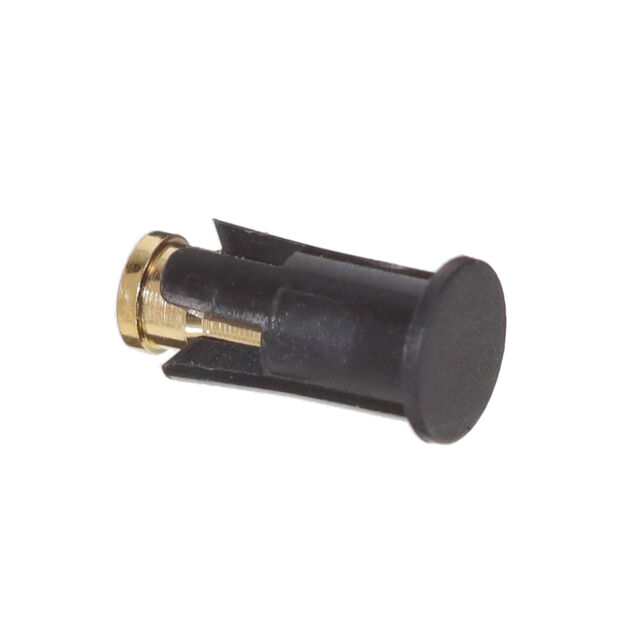

Mill-Max Manufacturing Corp. 806-22-001-30-001191	UL94 V-0	3 mm	0.118 in	0.137 in	3.48 mm	1000000	0.042 in	1.07 mm	Surface Mount	0.072 in	1.83 mm	Pick and Place	25 gf	Copper Alloy	20 µin	0.51 µm	60 gf	Sleeve & Plunger (Pogo Pins)	Gold	2 A
