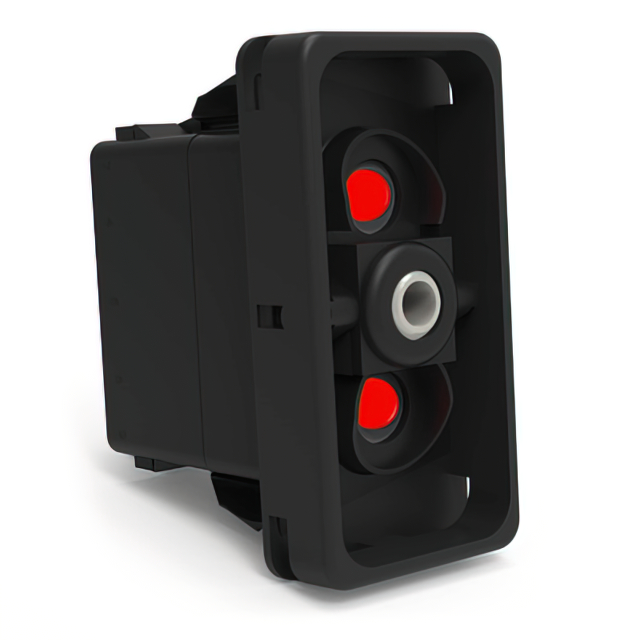

V8D2UTT1 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPDT 20A 12V
| Part | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Illumination Type, Color | Circuit | Termination Style | Mechanical Life | Voltage Rating - DC | Current Rating (Amps) | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Electrical Life | Illumination Voltage (Nominal) | Actuator Marking | Ingress Protection | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 21.08 mm | 36.83 mm | Mom-Off-Mom | LED Red/Red | SPDT | Quick Connect - 0.250" (6.3mm) | 100000 Cycles | 12 V | 20 A | Actuator Arm Cap Required - Illuminated | 85 °C | -40 °C | CSA UL VDE | 100000 Cycles | 12 VDC | Varies by Cap | IP66/IP68 | Panel Mount Snap-In |
