LPPB122 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

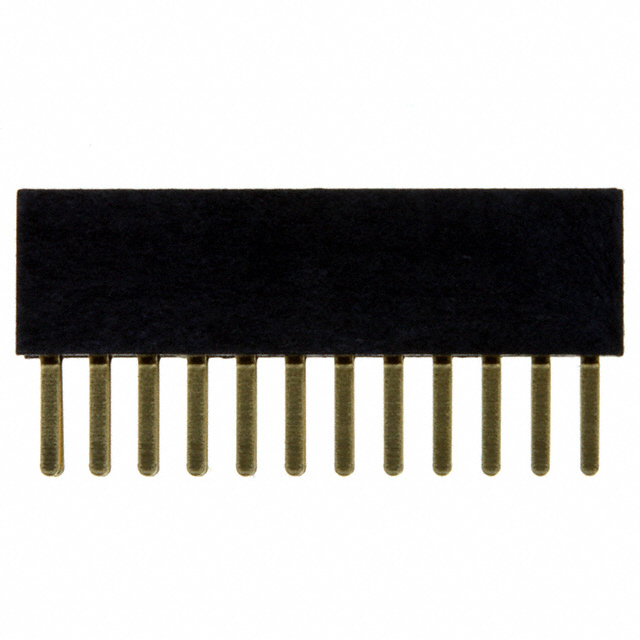

CONN HDR 24POS 0.05 GOLD PCB
| Part | Insulation Height | Insulation Height | Insulation Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Connector Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Shape | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Type | Number of Positions Loaded | Number of Rows | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 0.177 in | 4.5 mm | Liquid Crystal Polymer (LCP) | 24 | Flash | Flash | Header | Solder | 125 °C | -40 °C | Gold | UL94 V-0 | 0.118 in | 3 mm | Gold | Through Hole | 0.05 in | 1.27 mm | Black | Square | 0.05 in | 1.27 mm | Push-Pull | Female Socket | All | 2 | Phosphor Bronze |
