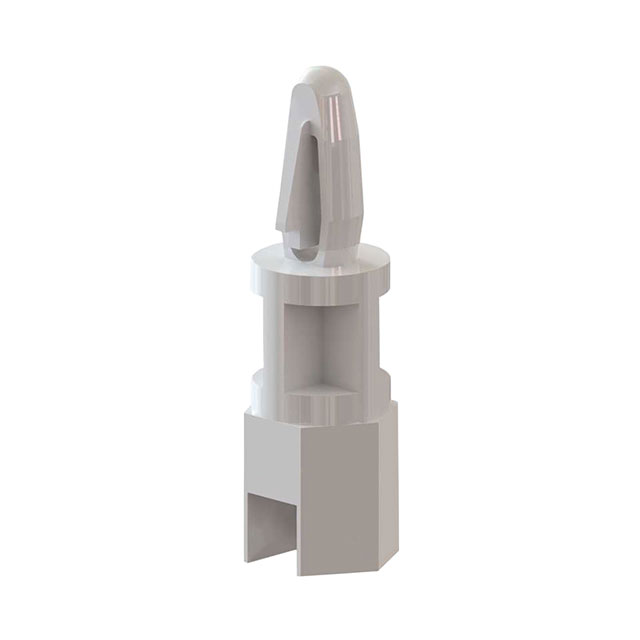

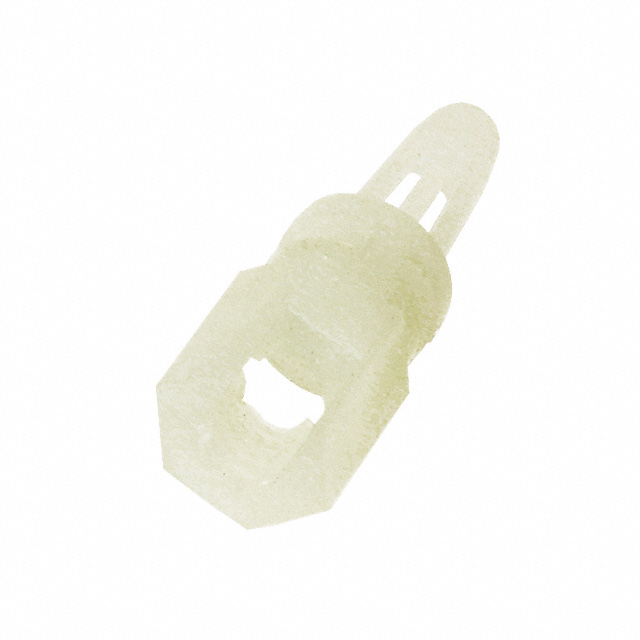

LCBS-TF Series
Manufacturer: Essentra Components
Beta
⌘K
CBS LOCK M4-THREAD FEMALE 3/8"
| Part | Material | Holding Type | Mounting Type | Length - Overall | Length - Overall | Between Board Height | Between Board Height | Between Board Height | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Hole Diameter | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Features | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Nylon | Snap Lock | Screw Mount | 0.775 in | 19.69 mm | 0.375 in | 9.53 mm | 0.375 " | ||||||||||||
Essentra Components | Nylon Flame Retardant | Arrowhead Snap Lock | 0.625 in | 15.88 mm | 5 8 | 1.57 mm | 0.062 in | 0.0625 in | 6-32 Thread | 3.96 mm | 5 32" | 0.156 in | ||||||||
Essentra Components | Nylon Flame Retardant | Arrowhead Snap Lock | 0.5 in | 12.7 mm | 0.5 in | 1.57 mm | 0.062 in | 0.0625 in | 6-32 Thread | 3.96 mm | 5 32" | 0.156 in | ||||||||
 Essentra Components | Nylon | Snap Lock | Screw Mount | 0.5 in | 12.7 mm | 0.5 in | 1.57 mm | 0.062 in | 0.0625 in | 6-32 Thread | 3.99 mm | 0.157 " | 0.902 in | 22.9 mm | ||||||
 Essentra Components | Nylon | Snap Lock | Screw Mount | 1.028 in | 26.1 mm | 0.625 in | 15.88 mm | 5 8 | 1.57 mm | 0.062 in | 0.0625 in | 6-32 Thread | 3.99 mm | 0.157 " | ||||||
Essentra Components | Nylon Flame Retardant | Arrowhead Snap Lock | 0.75 " | 19.05 mm | 0.75 " | 1.57 mm | 0.062 in | 0.0625 in | 6-32 Thread | 3.96 mm | 5 32" | 0.156 in |
