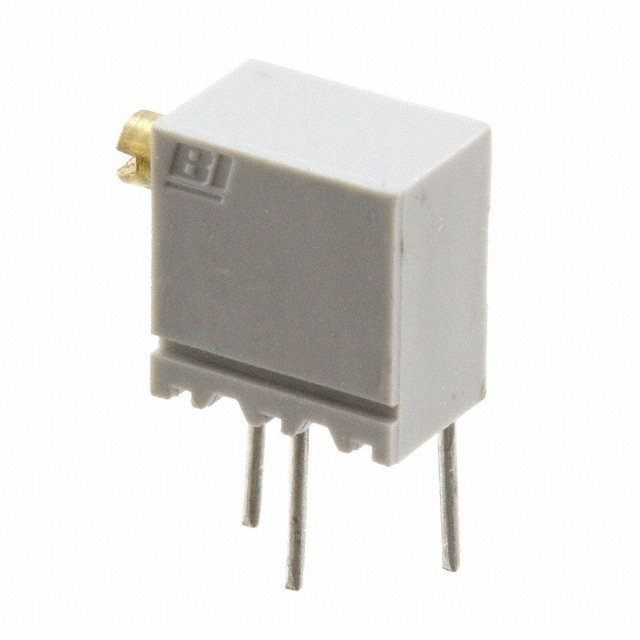

64XR Series

Catalog

TRIMMER 100K OHM 0.25W PC PIN

Part	Termination Style	Number of Turns	Mounting Type	Power (Watts)	Power (Watts)	Resistive Material	Adjustment Type	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Temperature Coefficient
TT Electronics/BI 64XR100KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Side Adjustment	100 kOhms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR50LF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Top Adjustment	50 Ohms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR500KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Top Adjustment		4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR2KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Side Adjustment	2 kOhms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR20LF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Top Adjustment	20 Ohms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR25KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Top Adjustment	25 kOhms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR1MEGLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Top Adjustment	1 MOhms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR200KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Side Adjustment	200000 Ohms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR1KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Side Adjustment	1000 Ohms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
TT Electronics/BI 64XR5KLF	PC Pins	12	Through Hole	0.25 W	0.25 W	Cermet	Side Adjustment	5 kOhms	4.19 mm	6.35 mm	0.165 in	0.25 in	10 %	100 ppm/°C
