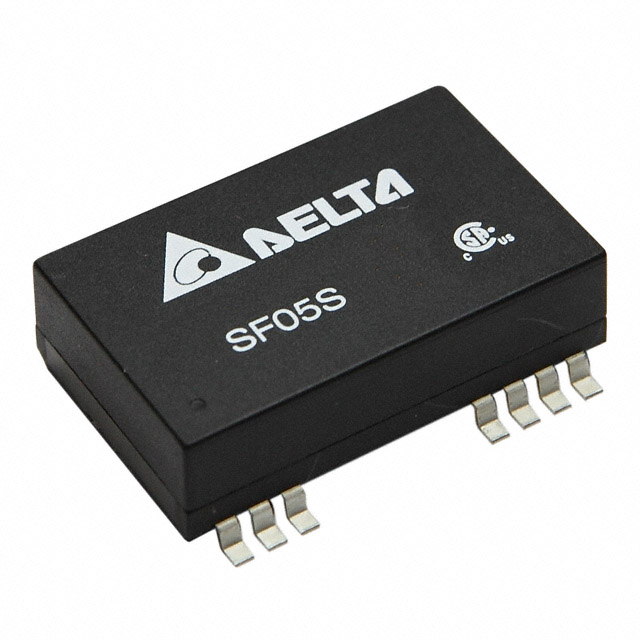

SF05D Series

Catalog

DC DC CONVERTER +/-5V 5W

Part	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Efficiency	Applications	Package / Case	Current - Output (Max)	Voltage - Output 1	Power (Watts)	Voltage - Output 2	Voltage - Input (Max) [Max]	Type	Control Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Delta Electronics SF05D1205A	OCP Remote On/Off SCP UVLO	0.1 in	1.01 "	1.31 in	33.4 mm	10.2 mm	25.6 mm	2	71 °C	-40 C	9 V	Surface Mount	1.5 kV	80 %	Medical	24-SMD Module 12 Leads	500 mA	5 V	5 W	-5 V	18 V	Isolated Module	Active High Enable
Delta Electronics SF05D2412A	OCP Remote On/Off SCP UVLO	0.1 in	1.01 "	1.31 in	33.4 mm	10.2 mm	25.6 mm	2	71 °C	-40 C	18 V	Surface Mount	1.5 kV	85 %	Medical	24-SMD Module 12 Leads		12 V	5 W	-12 V	36 V	Isolated Module	Active High Enable	208 mA	208 mA
