T41400 Series
Manufacturer: TE Connectivity AMP Connectors

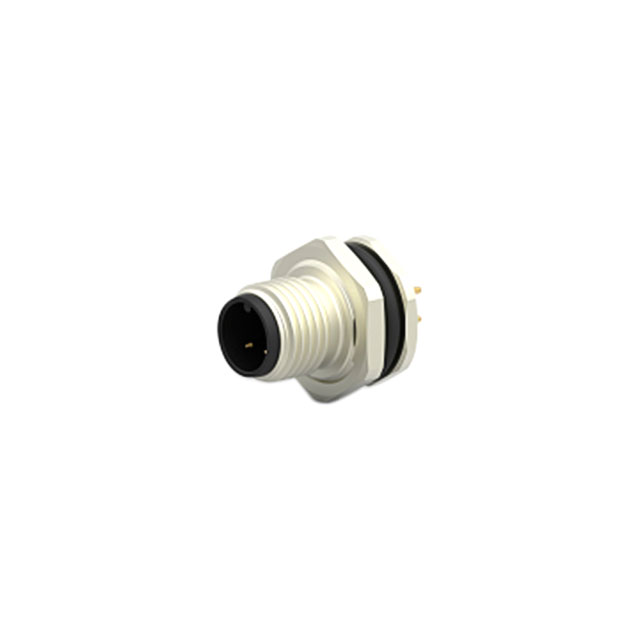

SENSOR CONNECTOR, M12, PLUG, 4 CONTACTS, PCB PIN, STRAIGHT PANEL MOUNT
| Part | Contact Material | Insert Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Shell Material | Mounting Type | Orientation | Ingress Protection | Voltage Rating | Connector Type | Termination | Color | Material Flammability Rating | Fastening Type | Mounting Feature | Contact Finish - Mating | Number of Positions | Shielding | Primary Material | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Industrial | 0.076 µm | 3 µin | 4 A | Copper Alloy | Panel Mount Through Hole | A | IP67 - Dust Tight Waterproof | 250 V | Receptacle Male Pins | Solder | Silver | UL94 V-0 | Threaded | Bulkhead - Front Side Nut | Gold | 4 | Unshielded | Metal | Nickel | 85 °C | -40 C | M12-4 |
TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Industrial | 0.076 µm | 3 µin | 4 A | Copper Alloy | Panel Mount Through Hole | A | IP67 - Dust Tight Waterproof | 250 V | Receptacle Male Pins | Solder | Silver | UL94 V-0 | Threaded | Bulkhead - Front Side Nut | Gold | Unshielded | Metal | Nickel | 85 °C | -40 C | M12-3 | |
TE Connectivity AMP Connectors | Copper Alloy | Nylon 6/6 Polyamide (PA66) | Industrial | 0.076 µm | 3 µin | 4 A | Copper Alloy | Panel Mount Through Hole | A | IP67 - Dust Tight Waterproof | 250 V | Receptacle Male Pins | Solder | Silver | Threaded | Bulkhead - Front Side Nut | Gold | 4 | Unshielded | Metal | Nickel | 85 °C | -40 C | M12-4 |
