2172068 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

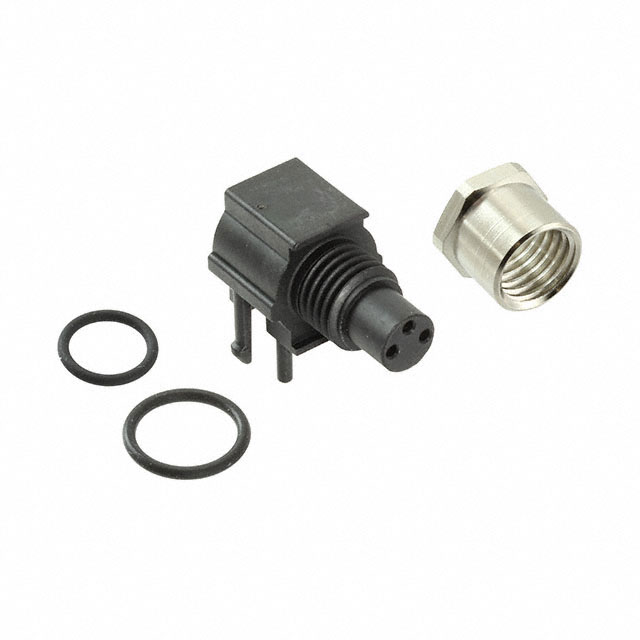

CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Applications | Shell Material | Fastening Type | Shell Size - Insert | Termination | Primary Material | Color | Mounting Feature | Contact Finish - Mating | Mounting Type | Ingress Protection | Voltage Rating | Features | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 85 °C | -40 °C | Nickel | Automation Control Industrial Telecommunications | Brass | Push-Pull | M8-3 | Solder | Metal | Silver | Bulkhead | Gold | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 60 VAC | Board Guide Board Lock | 4 A | |

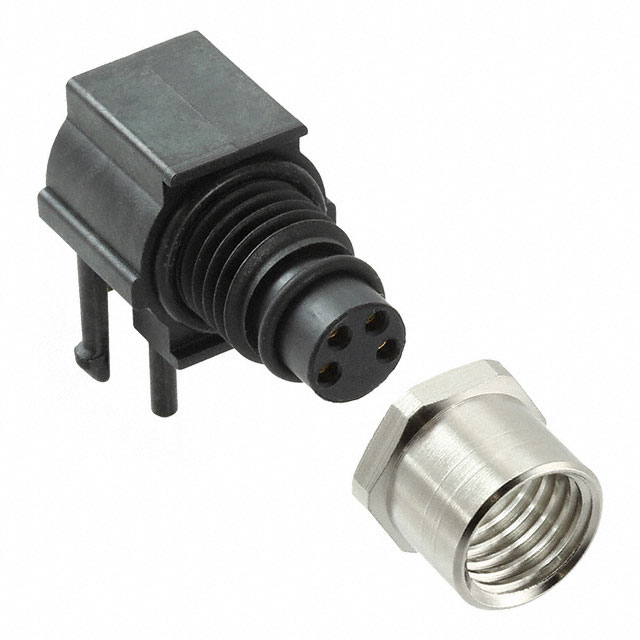

 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 85 °C | -40 °C | Nickel | Automation Control Industrial Telecommunications | Brass | Push-Pull | M8-4 | Solder | Metal | Silver | Bulkhead | Gold | Panel Mount Right Angle Through Hole | IP67 - Dust Tight Waterproof | 30 VAC | Board Guide Board Lock | 4 A | 4 |
