1814802 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

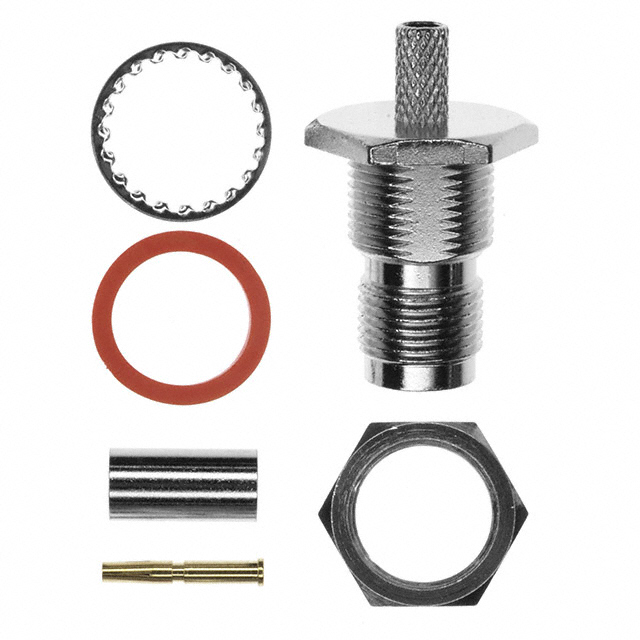

CONN TNC JACK STR 50 OHM CRIMP
| Part | Center Contact Material | Body Finish | Mounting Feature | Housing Color | Mating Cycles | Number of Ports | Cable Group | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Connector Type | Frequency - Max [Max] | Contact Termination | Connector Style | Center Contact Plating | Shield Termination | Impedance | Insertion Loss | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Nickel | Bulkhead - Front Side Nut | Silver | 50 | 1 | 141A Belden 9907 RG-58C | Polyoxymethylene (POM) Acetal | 500 V | -65 ░C | 85 °C | 1 Connector 1 Contact 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve 2 Ferrules | Female Socket Jack | 4 GHz | Crimp | TNC | Gold | Crimp | 50 Ohms | 0.2 dB | Zinc Alloy |
