D4S20D Series
Manufacturer: Rosenberger
Beta
⌘K
CONN HSD FAKRA PLUG R/A 100OHM
| Part | Voltage Rating | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Body Material | Shield Termination | Fastening Type | Housing Color | Connector Style | Center Contact Material | Number of Ports | Features | Frequency - Max [Max] | Contact Termination | Mounting Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

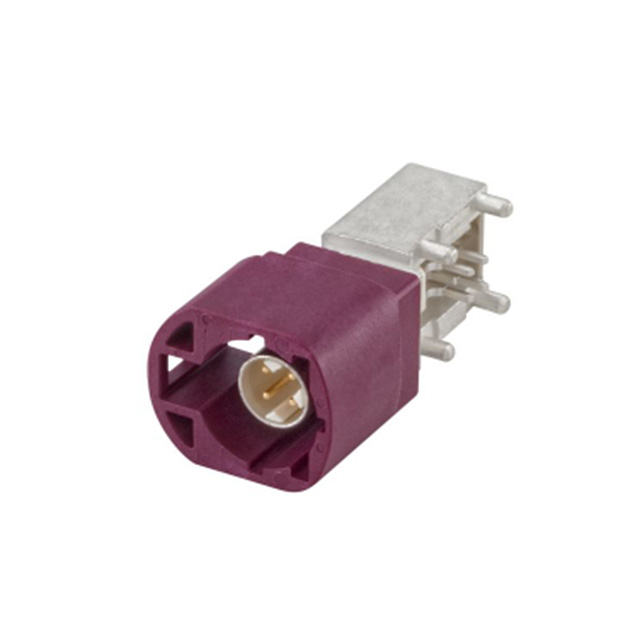

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Bordeaux Violet | Fakra HSD® Quadraxial | Bronze | 1 | Code D | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |

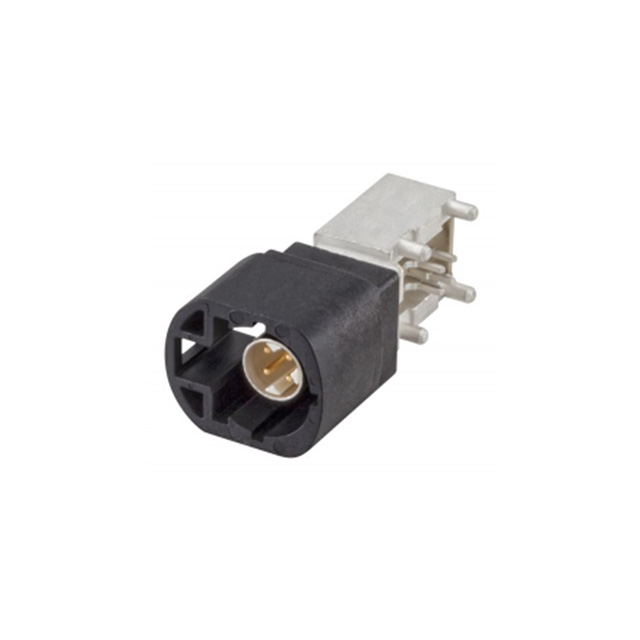

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Black | Fakra HSD® Quadraxial | Bronze | 1 | Code A | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |

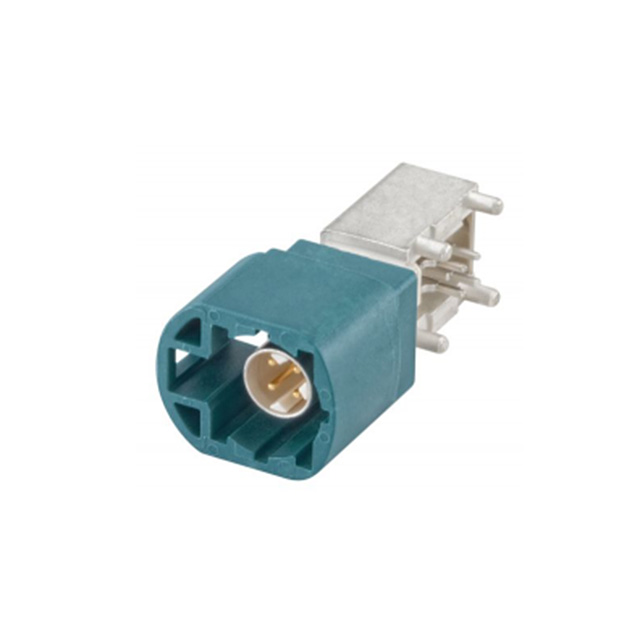

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Blue Water | Fakra HSD® Quadraxial | Bronze | 1 | Code Z | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |

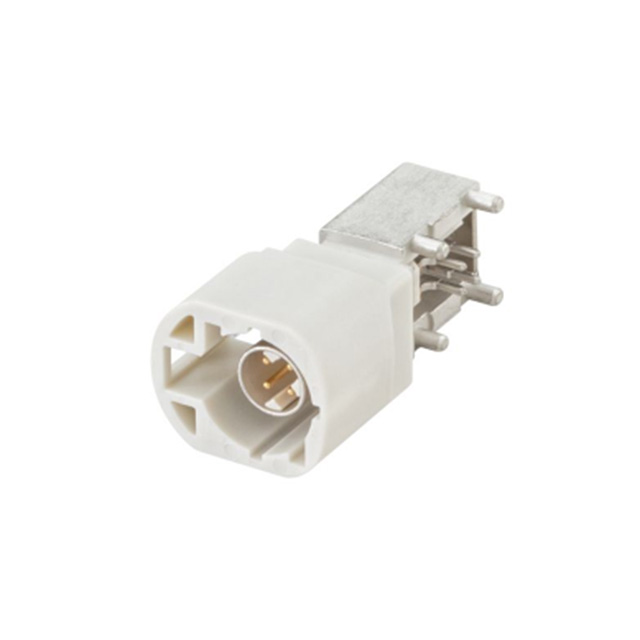

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | White | Fakra HSD® Quadraxial | Bronze | 1 | Code B | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |

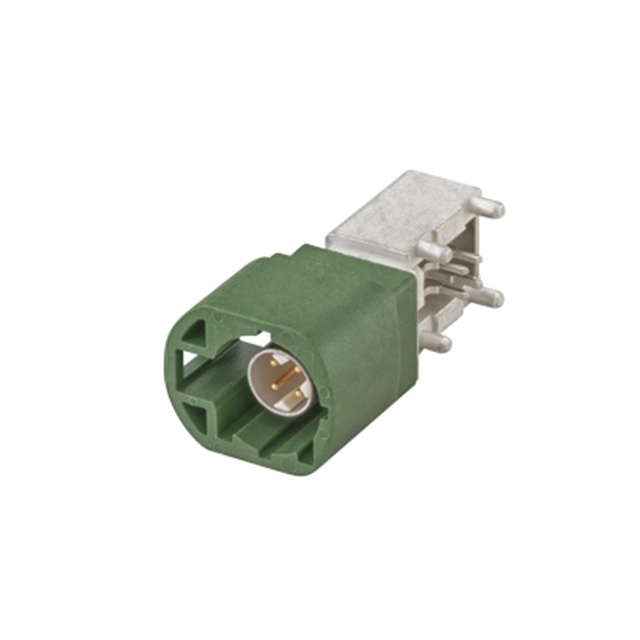

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Green | Fakra HSD® Quadraxial | Bronze | 1 | Code E | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |

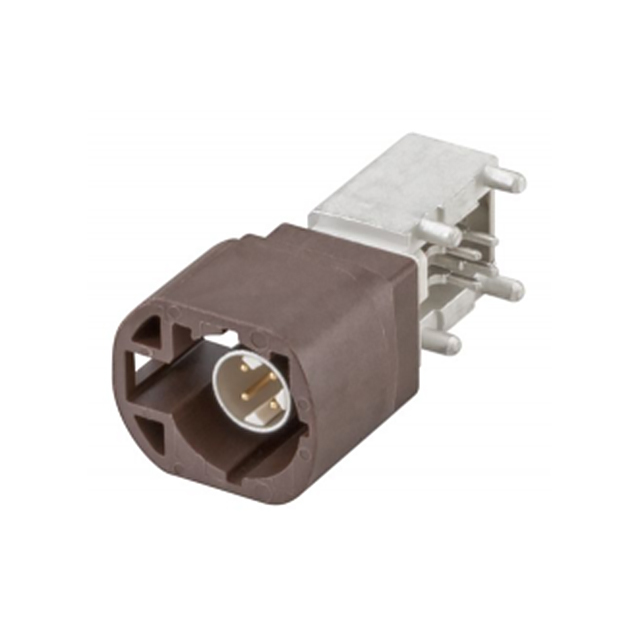

 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Brown | Fakra HSD® Quadraxial | Bronze | 1 | Code F | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |
 Rosenberger | 100 V | Gold | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 25 | Nickel | Brass | Solder | Latch Lock | Violet | Fakra HSD® Quadraxial | Bronze | 1 | Code H | 2 GHz | Solder | Right Angle Through Hole | 100 Ohms | Plug Male Pin |
