M80-888 Series

Catalog

RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 6 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 2 ROW

Part	Wire Type	Contact Type	Row Spacing	Row Spacing	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Fastening Type	Mounting Type	Number of Rows [custom]	Color	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions [custom]

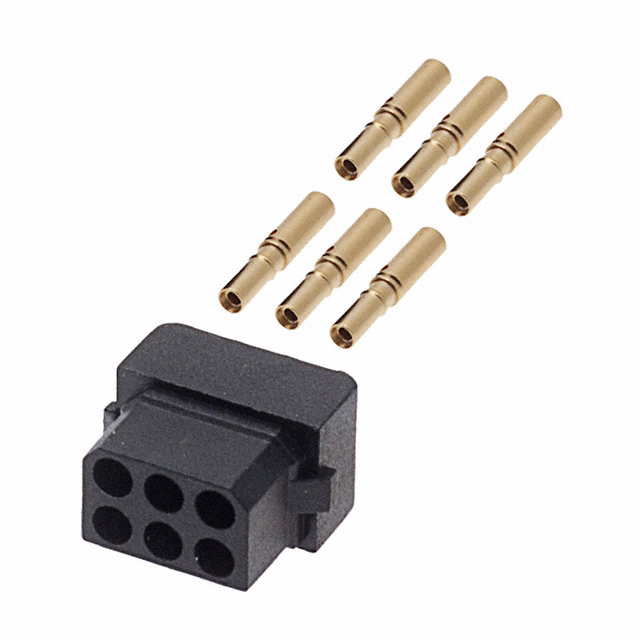

Harwin Inc. M80-8880605	Discrete	Female Socket	2 mm	0.079 in	Crimp	6	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

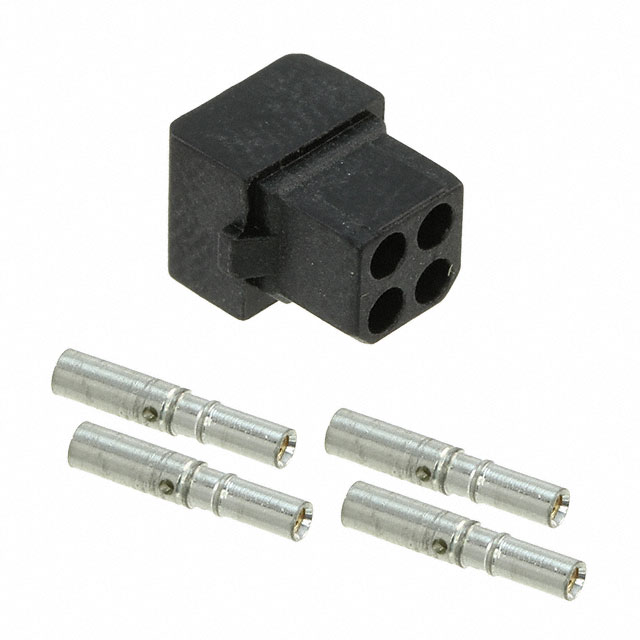

Harwin Inc. M80-8880401	Discrete	Female Socket	2 mm	0.079 in	Crimp	4	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

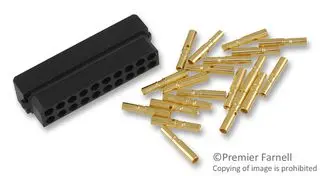

Harwin Inc. M80-8882005	Discrete	Female Socket	2 mm	0.079 in	Crimp	20	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

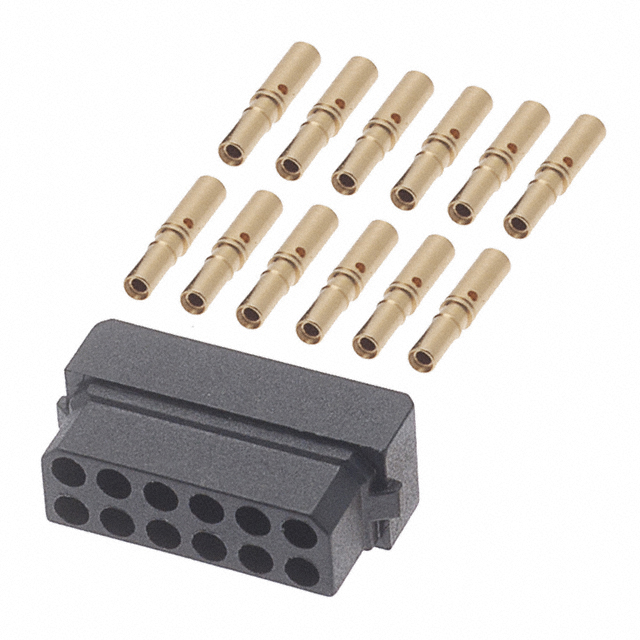

Harwin Inc. M80-8881205	Discrete	Female Socket	2 mm	0.079 in	Crimp	12	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

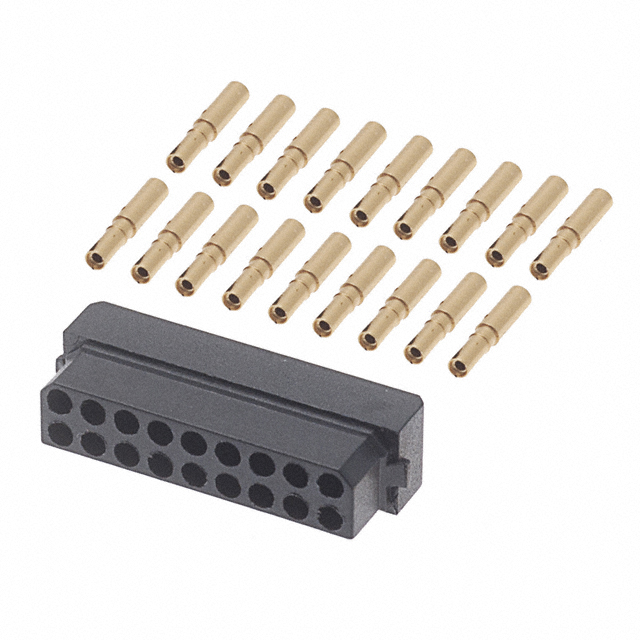

Harwin Inc. M80-8881805	Discrete	Female Socket	2 mm	0.079 in	Crimp	18	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG
Harwin Inc. M80-8881405	Discrete	Female Socket	2 mm	0.079 in	Crimp	14	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

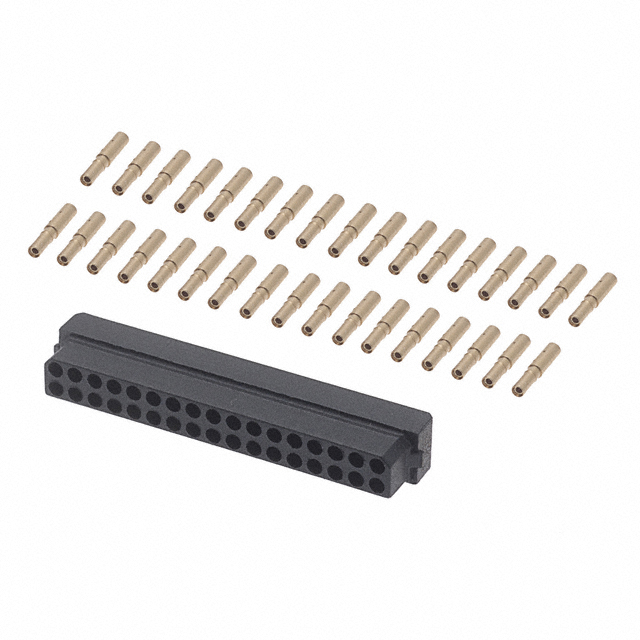

Harwin Inc. M80-8883405	Discrete	Female Socket	2 mm	0.079 in	Crimp		0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG	34

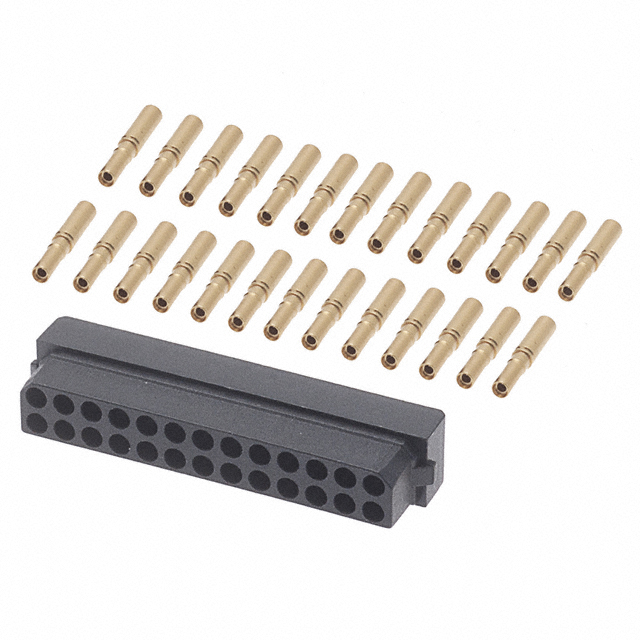

Harwin Inc. M80-8882605	Discrete	Female Socket	2 mm	0.079 in	Crimp	26	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG

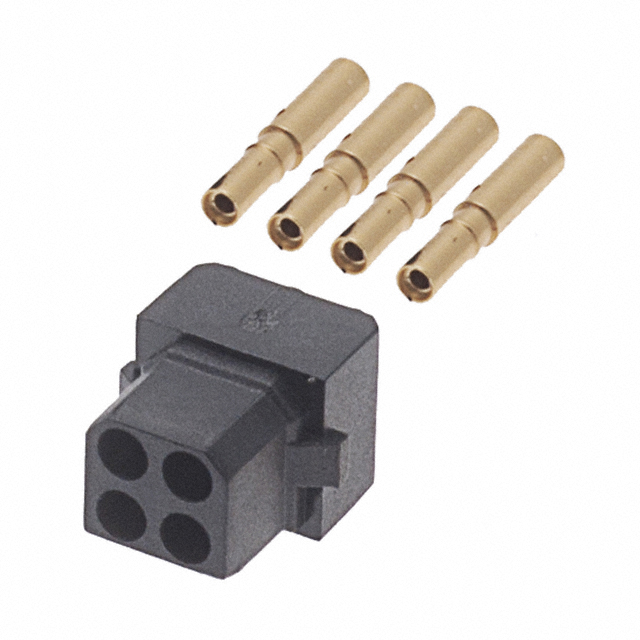

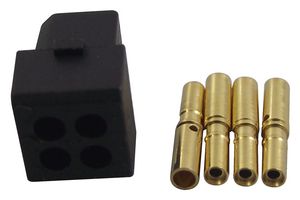

Harwin Inc. M80-8880405	Discrete	Female Socket	2 mm	0.079 in	Crimp	4	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG
Harwin Inc. M80-8880805	Discrete	Female Socket	2 mm	0.079 in	Crimp	8	0.3 Ám	11.8 Áin	Receptacle	0.079 in	2 mm	Gold	Locking Ramp	Free Hanging (In-Line)	2	Black	24 AWG	28 AWG
