EN2P3F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

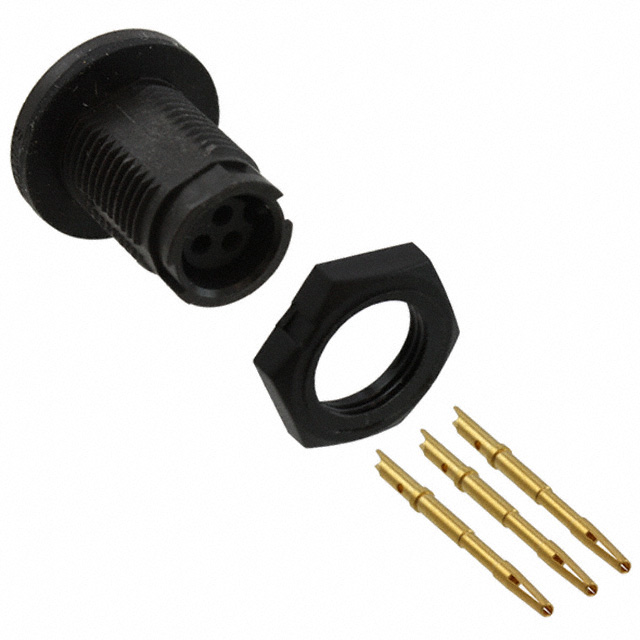

CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Insert Material | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Voltage Rating | Termination | Current Rating (Amps) | Contact Material | Color | Contact Finish - Mating | Shielding | Applications | Fastening Type | Orientation | Primary Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Elastomer | IP66 IP67 IP68 | Receptacle Female Sockets | 85 °C | -40 °C | Bulkhead - Front Side Nut | 125 VAC | Crimp Solder Cup | 2 A | Copper Alloy | Black | Gold | Unshielded | Communication Systems Industrial Marine Medical | Bayonet Lock | Keyed | Plastic | UL94 V-0 |
