GD25D05 Series

Catalog

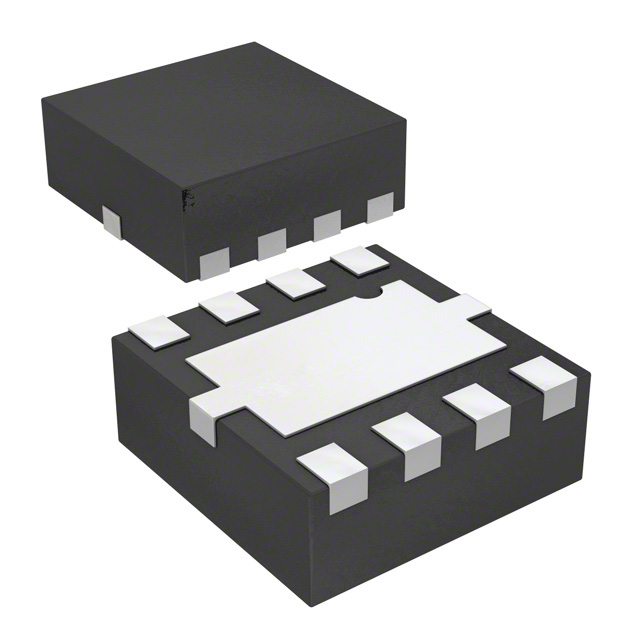

IC FLASH 512KBIT SPI/DUAL 8USON

Part	Memory Format	Memory Interface (Type)	Write Cycle Time - Word	Write Cycle Time - Page	Package Name	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Technology	Clock Frequency	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Memory Type	Memory Size	Package / Case	Memory Depth	Memory Width	Access Time
GigaDevice Semiconductor (HK) Limited GD25D05CKIGR	FLASH	SPI - Dual I/O	50 µs	4 ms	8-USON	1.5 mm	1.5 mm	85 °C	-40 °C	FLASH - NOR	100 MHz	3.6 V	2.7 V	Surface Mount	Non-Volatile	64 kB	8-XFDFN Exposed Pad	64 K	8 bit
GigaDevice Semiconductor (HK) Limited GD25D05EEEGR	FLASH	SPI - Dual I/O	120 µs	4 ms	8-USON	2 mm	3 mm	125 °C	-40 °C	FLASH - NOR (SLC)	104 MHz	3.6 V	2.7 V	Surface Mount	Non-Volatile	64 kB	8-XFDFN Exposed Pad	64 K	8 bit	6 ns
GigaDevice Semiconductor (HK) Limited GD25D05EKIGR	FLASH	SPI - Dual I/O	100 µs	4 ms	8-USON	1.5 mm	1.5 mm	85 °C	-40 °C	FLASH - NOR (SLC)	104 MHz	3.6 V	2.7 V	Surface Mount	Non-Volatile	64 kB	8-XFDFN Exposed Pad	64 K	8 bit	6 ns
GigaDevice Semiconductor (HK) Limited GD25D05ETIGR	FLASH	SPI - Dual I/O	100 µs	4 ms	8-SOIC 8-SOP	3.9 mm	0.154 in	85 °C	-40 °C	FLASH - NOR (SLC)	104 MHz	3.6 V	2.7 V	Surface Mount	Non-Volatile	64 kB		64 K	8 bit	6 ns
