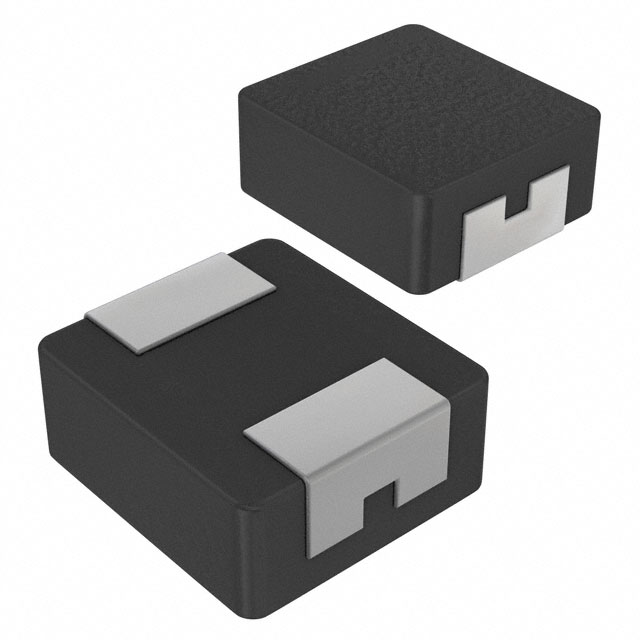

SRP4020TA Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRP4020TA SERIES, 15 H, 20%, SHIELDED, 0.374 OHM, 1.5 A ROHS COMPLIANT: YES

Part	Material - Core	Ratings	Q @ Freq	Supplier Device Package	Shielding	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Inductance Frequency - Test	Tolerance	Current - Saturation (Isat)	Mounting Type	Inductance	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]
Bourns Inc. SRP4020TA-150M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded	374 mOhm	0.079 in	2 mm	17 MHz	100 kHz	20 %	1.9 A	Surface Mount	15 µH	1.5 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm
Bourns Inc. SRP4020TA-R68M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded	19 mOhm	0.079 in	2 mm	100 MHz	100 kHz	20 %	10 A	Surface Mount	0.68 µH	7 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm
Bourns Inc. SRP4020TA-6R8M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded		0.079 in	2 mm	24 MHz	100 kHz	20 %	2.8 A	Surface Mount	6.8 µH	2.1 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm	172 mOhm
Bourns Inc. SRP4020TA-4R7M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded	105 mOhm	0.079 in	2 mm	27 MHz	100 kHz	20 %	3.5 A	Surface Mount	4.7 ÁH	2.6 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm
Bourns Inc. SRP4020TA-2R2M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded		0.079 in	2 mm	45 MHz	100 kHz	20 %	6 A	Surface Mount	2.2 µH	4 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm	61 mOhm
Bourns Inc. SRP4020TA-R56M	Carbonyl Powder	AEC-Q200	10 100 kHz	2-SMD	Shielded		0.079 in	2 mm	105 MHz	100 kHz	20 %	10 A	Surface Mount	560 nH	7.3 A	-40 C	150 °C	Drum Core Wirewound	2-SMD	0.16 in	4.45 mm	0.175 in	4.06 mm	16 mOhm
