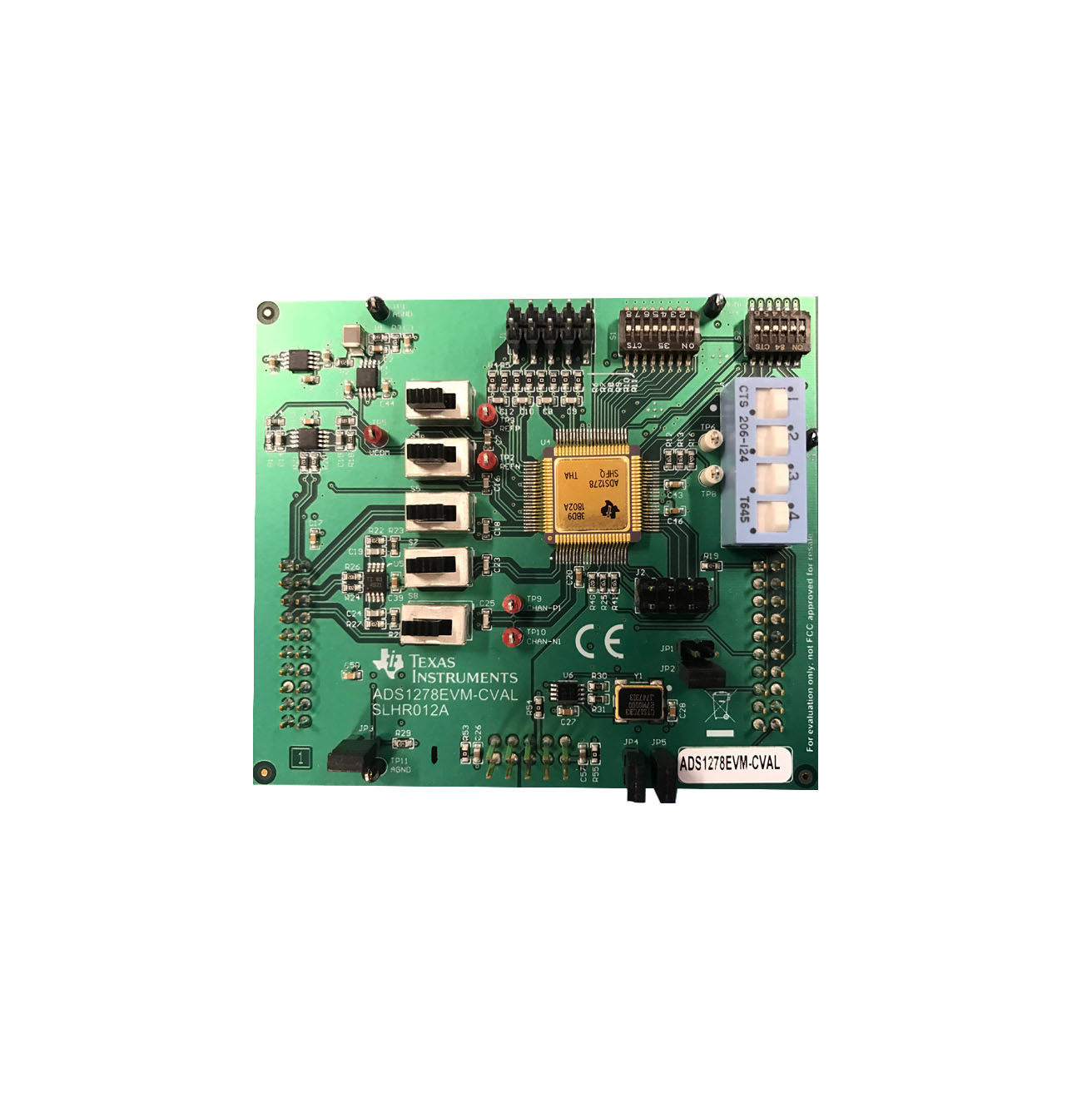

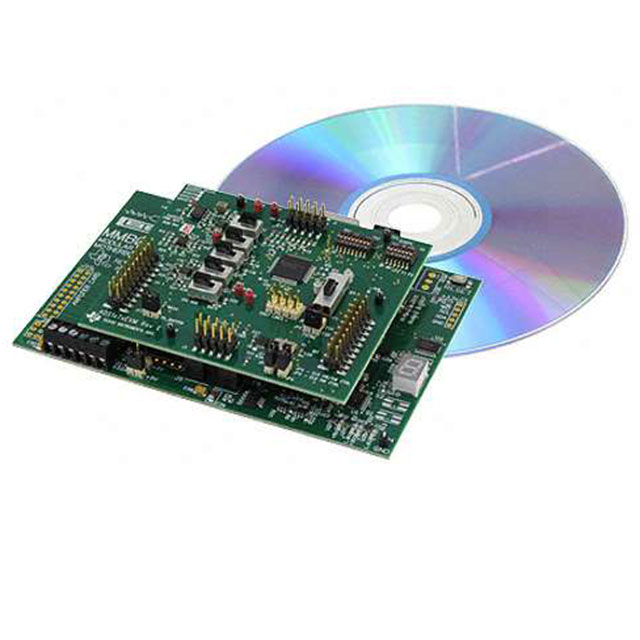

ADS1278-HT Series
24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications
Manufacturer: Texas Instruments
Catalog
24-Bit, 144kSPS, 8-Ch Simultaneous-Sampling Delta-Sigma ADC for Wide Bandwidth Applications
Key Features
• Simultaneously Measure Eight ChannelsUp to 128-kSPS Data RateAC Performance:62-kHz Bandwidth111-dB SNR (High-Resolution Mode)–108-dB THDDC Accuracy:0.8-µV/°C Offset Drift1.3-ppm/°C Gain DriftSelectable Operating Modes:High-Speed: 128 kSPS, 106 dB SNRHigh-Resolution: 52 kSPS, 111 dB SNRLow-Power: 52 kSPS, 31 mW/chLow-Speed: 10 kSPS, 7 mW/chLinear Phase Digital FilterSPI or Frame-Sync Serial InterfaceLow Sampling Aperture ErrorModulator Output Option (digital filter bypass)Analog Supply: 5 VDigital Core: 1.8 VI/O Supply: 1.8 V to 3.3 VCurrently Available in an HTQFP-64 PowerPAD™ package,an 84-Pin HFQ Package and a KGD Chiptray OptionSupports Extreme Temperature ApplicationsControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/210°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments High Temperature Products Utilize HighlyOptimized Silicon (Die) Solutions With Dsign and ProcessEnhancements to Maximize Performance Over Extended TemperaturesAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsVibration/Modal AnalysisMulti-Channel Data AcquisitionAcoustics/Dynamic Strain GaugesPressure Sensors(1)Custom temperature ranges availableAll other trademarks are the property of their respective ownersSimultaneously Measure Eight ChannelsUp to 128-kSPS Data RateAC Performance:62-kHz Bandwidth111-dB SNR (High-Resolution Mode)–108-dB THDDC Accuracy:0.8-µV/°C Offset Drift1.3-ppm/°C Gain DriftSelectable Operating Modes:High-Speed: 128 kSPS, 106 dB SNRHigh-Resolution: 52 kSPS, 111 dB SNRLow-Power: 52 kSPS, 31 mW/chLow-Speed: 10 kSPS, 7 mW/chLinear Phase Digital FilterSPI or Frame-Sync Serial InterfaceLow Sampling Aperture ErrorModulator Output Option (digital filter bypass)Analog Supply: 5 VDigital Core: 1.8 VI/O Supply: 1.8 V to 3.3 VCurrently Available in an HTQFP-64 PowerPAD™ package,an 84-Pin HFQ Package and a KGD Chiptray OptionSupports Extreme Temperature ApplicationsControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Extreme (–55°C/210°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityTexas Instruments High Temperature Products Utilize HighlyOptimized Silicon (Die) Solutions With Dsign and ProcessEnhancements to Maximize Performance Over Extended TemperaturesAPPLICATIONSDown-Hole DrillingHigh Temperature EnvironmentsVibration/Modal AnalysisMulti-Channel Data AcquisitionAcoustics/Dynamic Strain GaugesPressure Sensors(1)Custom temperature ranges availableAll other trademarks are the property of their respective owners
Description
AI
Based on the single-channel ADS1271, the ADS1274 (quad) and ADS1278 (octal) are 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 144k samples per second (SPS), allowing simultaneous sampling of four or eight channels. The devices are offered in identical packages, permitting drop-in expandability.
Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large passband droop. As a result, they have limited signal bandwidth and are mostly suited for dc measurements. High-resolution ADCs in audio applications offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The ADS1274 and ADS1278 combine these types of converters, allowing high-precision industrial measurement with excellent dc and ac specifications.
The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. These ADCs provide a usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005dB of ripple.
Four operating modes allow for optimization of speed, resolution, and power. All operations are controlled directly by pins; there are no registers to program. The devices are fully specified over the extended industrial range (–40°C to +105°C) and are available in an HTQFP-64 PowerPAD™ package.
Based on the single-channel ADS1271, the ADS1274 (quad) and ADS1278 (octal) are 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 144k samples per second (SPS), allowing simultaneous sampling of four or eight channels. The devices are offered in identical packages, permitting drop-in expandability.
Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large passband droop. As a result, they have limited signal bandwidth and are mostly suited for dc measurements. High-resolution ADCs in audio applications offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The ADS1274 and ADS1278 combine these types of converters, allowing high-precision industrial measurement with excellent dc and ac specifications.
The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. These ADCs provide a usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005dB of ripple.
Four operating modes allow for optimization of speed, resolution, and power. All operations are controlled directly by pins; there are no registers to program. The devices are fully specified over the extended industrial range (–40°C to +105°C) and are available in an HTQFP-64 PowerPAD™ package.
