LS1028 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

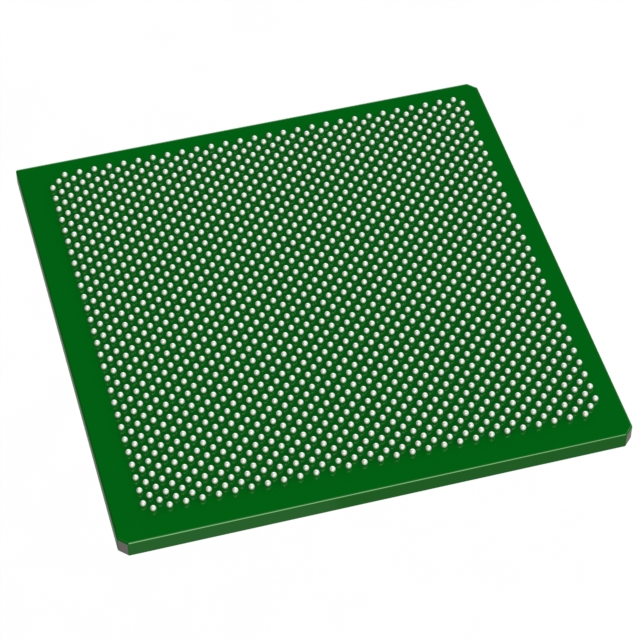

IC MPU QORIQ LAYER 1GHZ 448FBGA

Part	Additional Interfaces	Supplier Device Package	RAM Controllers	SATA	Package / Case	Number of Cores/Bus Width	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	Speed	Mounting Type	Operating System	Utilized IC / Part	Interconnect System	Type	Contents	Board Type	Suggested Programming Environment	Security Features	USB
Freescale Semiconductor - NXP LS1028ASE7KQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028ASE7NQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1.3 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028AYN7HNA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	800 MHz	Surface Mount
Freescale Semiconductor - NXP LS1028AXE7NQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1.3 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028AXE7KQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028AXN7NQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1.3 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028ASN7NQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1.3 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028ARDB-PA							ARM® Cortex®-A72					Fixed	Linux	LS1028A	mikroBUS Click	MPU	Accessories Board(s) Cable(s) Power Supply	Evaluation Platform	CodeWarrior
Freescale Semiconductor - NXP LS1028ASN7KQA	CANbus I2C SPI UART	448-FBGA (17x17)	DDR3L SDRAM DDR4 SDRAM	SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1 GHz	Surface Mount
Freescale Semiconductor - NXP LS1028AXE7PQA	CANbus I2C SPI UART	448-FBGA (17x17)		SATA 6Gbps (1)	448-BFBGA	2 Core 64 Bit	ARM® Cortex®-A72	105 °C	-40 °C	1 Gbps 2.5 Gbps	1.5 GHz	Surface Mount								Secure Boot TrustZone®	USB 3.0 (2)
