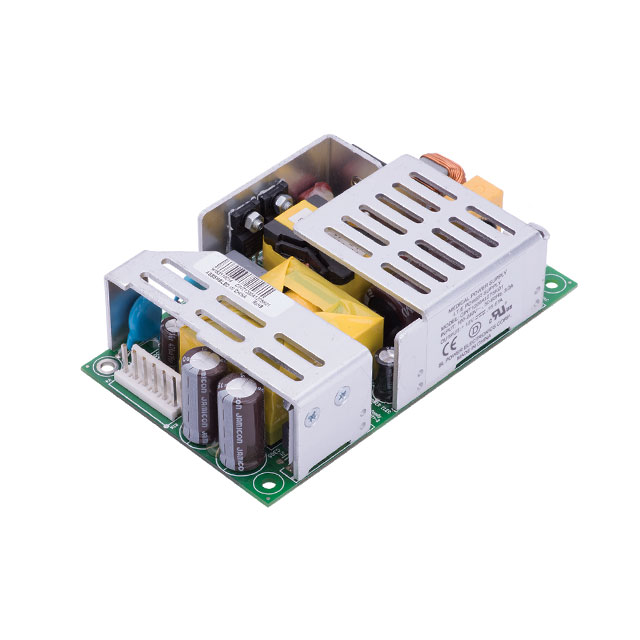

CINT1200 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 15V 12A 180W 9-PIN
| Part | Minimum Load Required | Approval Agency | Applications | Efficiency | Mounting Type | Type | Power (Watts) | Power (Watts) | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 1 | Features | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 15 V | 12 A | DC Input Capable Universal Input | 264 VAC | 90 VAC | ||
 SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 5 A | DC Input Capable Universal Input | 264 VAC | 90 VAC | 36 V | ||
SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 24 V | DC Input Capable Universal Input | 264 VAC | 90 VAC | |||
SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 28 V | DC Input Capable Universal Input | 264 VAC | 90 VAC | |||
 SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 48 V | 3.75 A | DC Input Capable Universal Input | 264 VAC | 90 VAC | ||
SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 18 V | 10 A | DC Input Capable Universal Input | 264 VAC | 90 VAC | ||
SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 12 V | 15 A | DC Input Capable Universal Input | 264 VAC | 90 VAC | ||
SL POWER / Advanced Energy | CE | ITE (Commercial) | 88 % | Chassis Mount | Open Frame | 200 W | 180 W | 4000 V | 1.3 in | 5 " | 127 mm | 76.2 mm | 3 " | 31.8 mm | 1 | 70 °C | -10 °C | 32 V | 5.62 A | DC Input Capable Universal Input | 264 VAC | 90 VAC |
