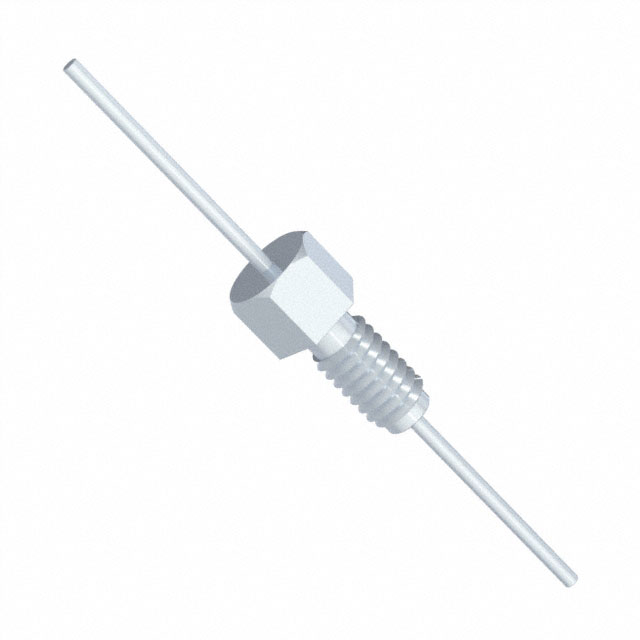

SFAAC Series

Catalog

CAP FEEDTHRU 220PF 500V AXIAL

Part	Insertion Loss	Current	Package / Case	Temperature Coefficient	Voltage - Rated	Tolerance	Thread Size	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Tolerance [Max]	Tolerance [Min]
Knowles Syfer SFAAC5000221MC0	10 dB	10 A	Axial Bushing	C0G NP0	500 V	20 %	4-40	220 pF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "
Knowles Syfer SFAAC0500333MX0		10 A	Axial Bushing	X7R	50 VDC	20 %	4-40	0.033 çF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "
Knowles Syfer SFAAC5000102MX0	23 dB	10 A	Axial Bushing	X7R	500 V	20 %	4-40	0.001 µF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "
Knowles Syfer SFAAC5000150ZC0		10 A	Axial Bushing	C0G NP0	500 V		4-40	15 pF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "	80 %	-20 %
Knowles Syfer SFAAC5000100ZC0		10 A	Axial Bushing	C0G NP0	500 V		4-40	10 pF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "	80 %	-20 %
Knowles Syfer SFAAC5000471MX0	16 dB	10 A	Axial Bushing	X7R	500 V	20 %	4-40	470 pF	-55 C	125 °C	9.2 mm	4 mm	0.362 in	0.157 "
