T 3487 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN RCPT FMALE 7P SILVER SOLDER

Part	Shell Material	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Connector Type	Primary Material	Shell Size - Insert	Ingress Protection	Color	Shielding	Number of Positions	Termination	Shell Finish	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Orientation	Note	Contact Type	Type	Contact Shape	Housing Color	Mounting Feature	Material Flammability Rating	Insert Material	Contact Size
Amphenol Tuchel Industrial T 3487 330	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7	Solder	Nickel	Threaded	-40 C	100 °C	Panel Mount Through Hole	Keyed
Amphenol Tuchel Industrial T 3487 420	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7	Solder	Nickel	Threaded	-40 C	100 °C	Panel Mount Through Hole	Keyed
Amphenol Tuchel Industrial T 3487 320	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7	Solder	Nickel	Threaded	-40 C	100 °C	Panel Mount Through Hole	Keyed

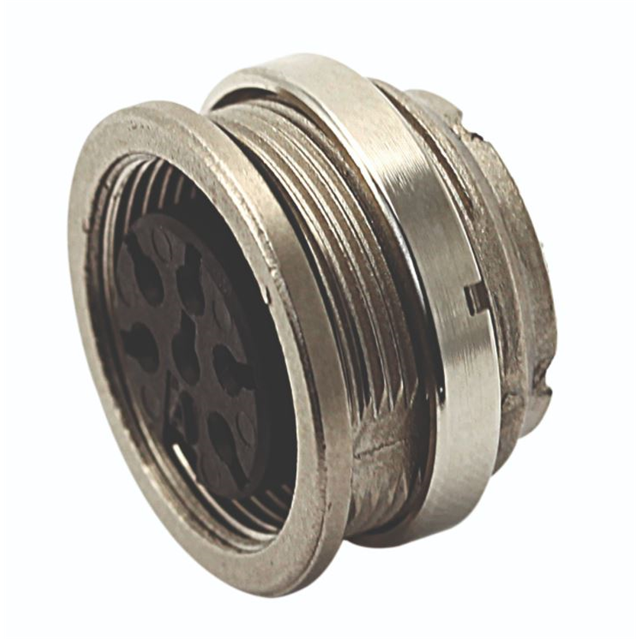

Amphenol Tuchel Industrial T 3487 550	Die Cast				Receptacle Housing		M16-7B	IP40		Shielded	7		Nickel	Threaded	-40 C	100 °C	Panel Mount	Keyed	Contacts Not Included	Crimp	For Female Sockets	Circular	Silver	Bulkhead - Rear Side Nut	UL94 V-0	Thermoplastic	1.5 mm
Amphenol Tuchel Industrial T 3487 900	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7	Solder	Nickel	Threaded	-40 C	100 °C	Panel Mount Right Angle Through Hole	Keyed

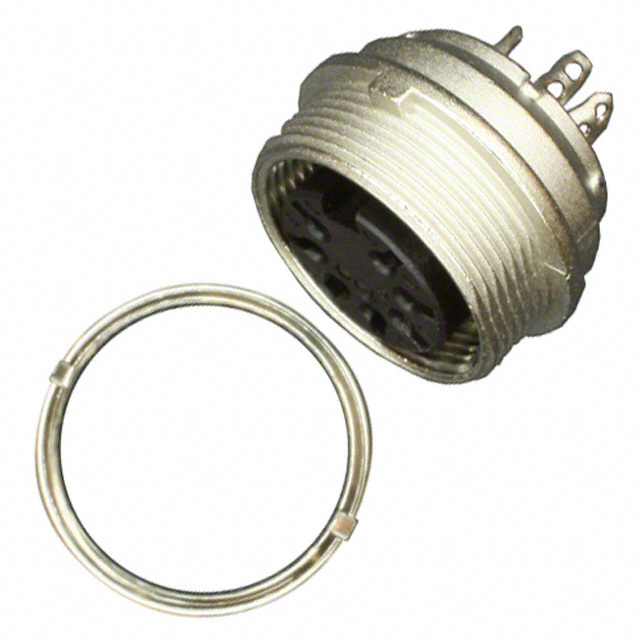

Amphenol Tuchel Industrial T 3487 100	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7		Nickel	Threaded	-40 C	100 °C	Panel Mount	Keyed
Amphenol Tuchel Industrial T 3487 430	Die Cast	Silver	250 V	7 A	Receptacle Female Sockets	Metal	M16-7B	IP40	Silver	Shielded	7	Solder	Nickel	Threaded	-40 C	100 °C	Panel Mount Through Hole	Keyed
