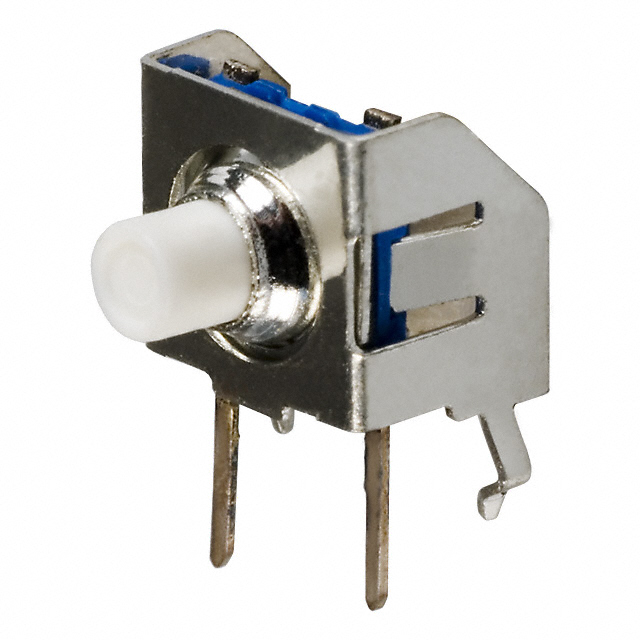

GSR8.54 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Mechanical Life | Actuator Length, Right Angle | Operating Force | Outline [x] | Outline [y] | Illumination | Switch Function | Contact Rating @ Voltage | Circuit | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Liquid Crystal Polymer (LCP) | 0.3 mm | 100000 Cycles | 6 mm | 130 gf | 8 mm | 8.54 mm | Non-Illuminated | Off-Mom | 0.05 A 50 VDC | SPST-NO | Side Actuated | 85 °C | -40 C | Standard | PC Pin | Right Angle Through Hole |
