1734531 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 28P 0.079 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Mounting Type	Termination	Voltage Rating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Fastening Type	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Connector Type	Contact Shape
TE Connectivity Raychem Cable Protection 2-1734531-8	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	28	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
TE Connectivity Raychem Cable Protection 3-1734531-6	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	36	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square

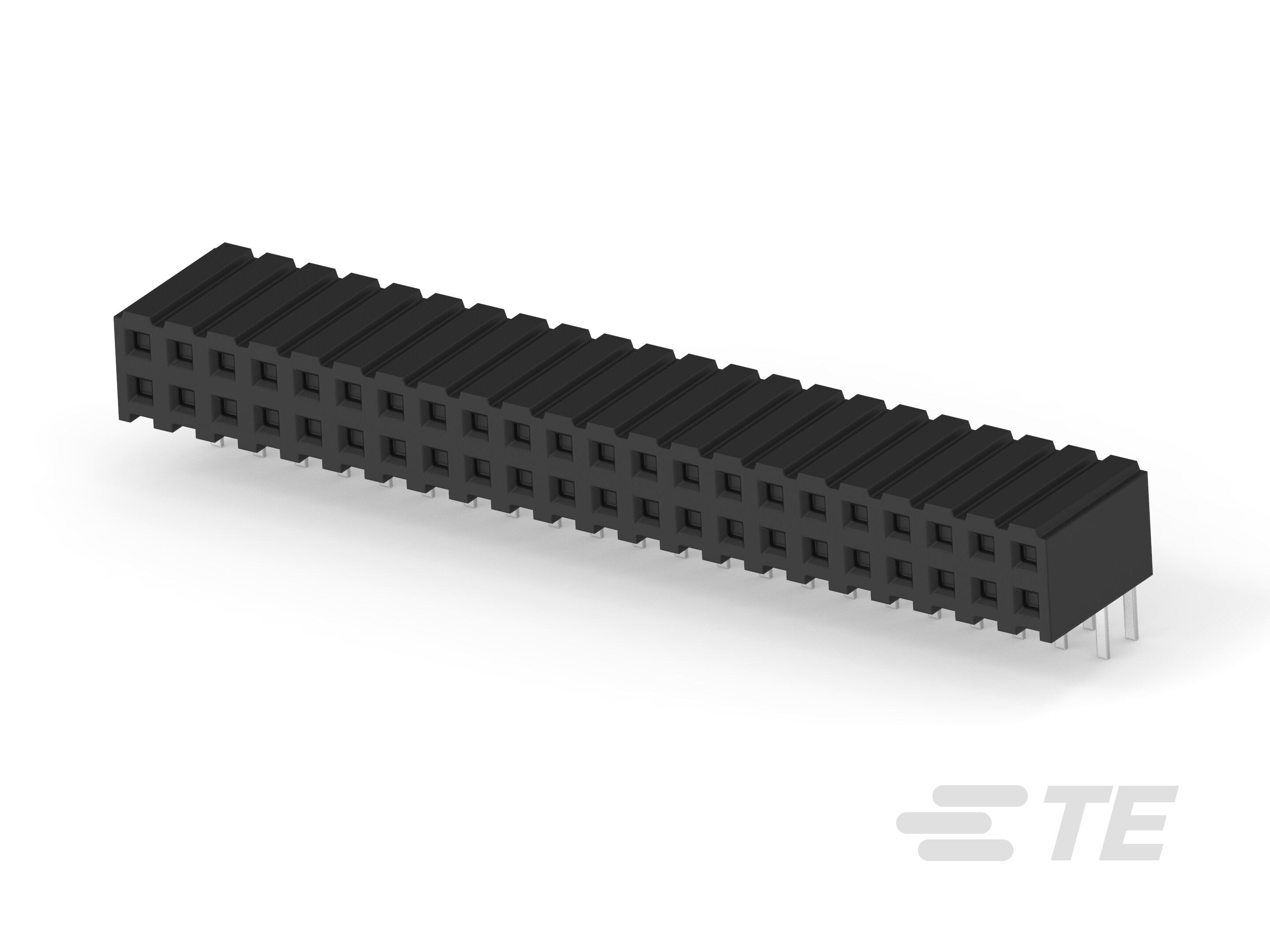

TE Connectivity Raychem Cable Protection 4-1734531-4	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	44	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
TE Connectivity Raychem Cable Protection 2-1734531-6	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	26	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
TE Connectivity Raychem Cable Protection 1734531-8	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	8	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
TE Connectivity Raychem Cable Protection 2-1734531-4	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	24	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
TE Connectivity Raychem Cable Protection 3-1734531-8	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	38	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square

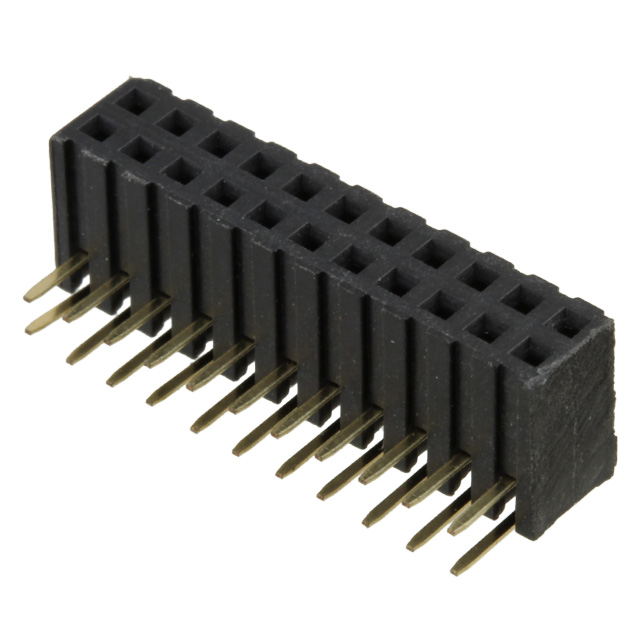

TE Connectivity Raychem Cable Protection 2-1734531-2	2.54 µm	100 µin	2	Through Hole Right Angle	Solder	250 VAC	Tin	Black	10 çin	0.25 çm	Female Socket	0.079 in	2 mm	Gold	0.118 in	3 mm	Phosphor Bronze	Push-Pull	All	22 positions	-40 °C	105 ░C	UL94 V-0	Thermoplastic	0.079 in	2 mm	0.191 in	4.85 mm	Receptacle	Square
