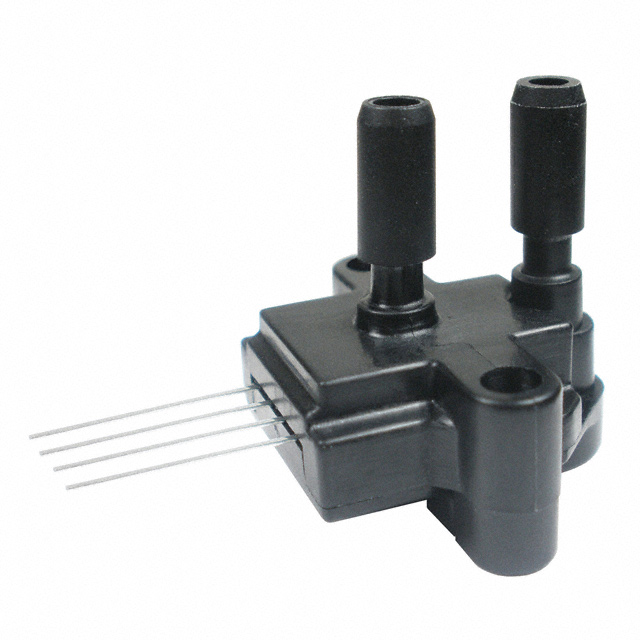

HSCSNBD Series

Catalog

SENSOR 0.04PSID 0.19" 4.5V 4SIP

Part	Accuracy	Features	Maximum Pressure	Maximum Pressure	Supplier Device Package	Package / Case	Termination Style	Port Size	Port Size	Port Style	Operating Pressure	Operating Pressure	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Min]	Output [Max]	Mounting Type	Output

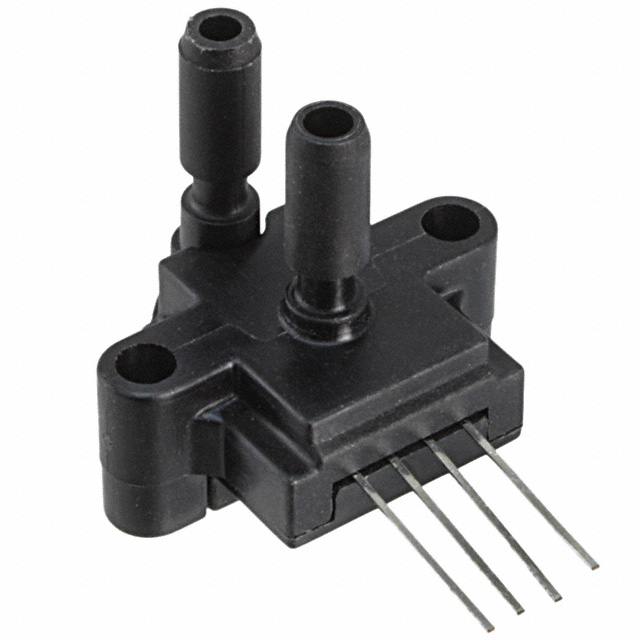

Honeywell Sensing and Productivity Solutions HSCSNBD001NDAA5	0.25 %	Amplified Output Temperature Compensated	9.76 PSI	67.28 kPa	4-SIP	4-SIP Dual Ports Same Side	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	Barbless	0.04 PSI	0.25 kPa	Differential	85 °C	-20 C	Analog Voltage	Board Mount	5.05 V	4.95 V	0.5 V	4.5 V	Through Hole
Honeywell Sensing and Productivity Solutions HSCSNBD010ND2A3
Honeywell Sensing and Productivity Solutions HSCSNBD001ND2A3	0.25 %	Amplified Output Temperature Compensated			4-SIP	4-SIP Dual Ports Same Side	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	Barbless	0.04 PSI	0.25 kPa	Differential	85 °C	-20 C	I2C	Board Mount	3.33 V	3.27 V			Through Hole	12 b
