DF04 Series

Catalog

RECTIFIER BRIDGE DIODE SINGLE 400V 1A 4-PIN CASE DFS T/R

Part	Technology	Package / Case	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Package / Case
Comchip Technology DF04ST-G	Standard	4-SMD Gull Wing	Surface Mount	1 A	10 µA	150 °C	-55 °C	Single Phase	DFS	400 V	1.1 V
Comchip Technology DF04ST-HF	Standard	4-SMD Gull Wing	Surface Mount	1 A	10 µA	150 °C	-55 °C	Single Phase	DFS	400 V	1.1 V

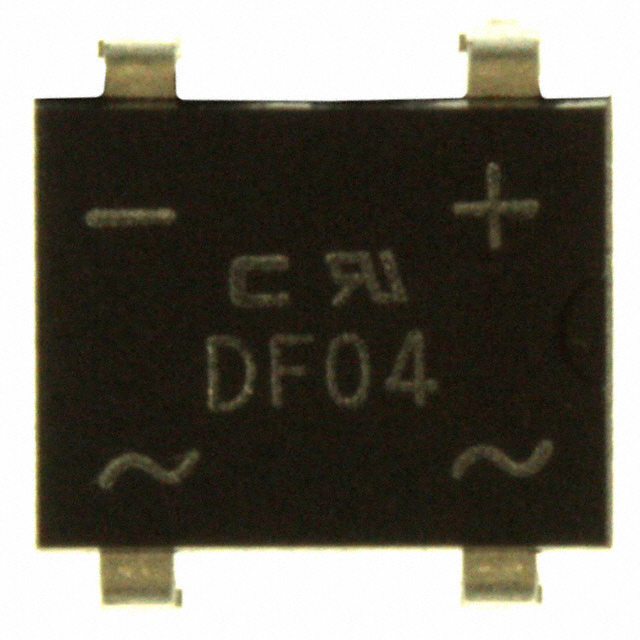

Comchip Technology DF04-G	Standard	4-EDIP	Through Hole	1 A	10 µA	150 °C	-55 °C	Single Phase	4-DF	400 V	1.1 V	0.321 in	8.15 mm
Comchip Technology DF04S-HF	Standard	4-SMD Gull Wing	Surface Mount	1 A	10 µA	150 °C	-55 °C	Single Phase	DFS	400 V	1.1 V
