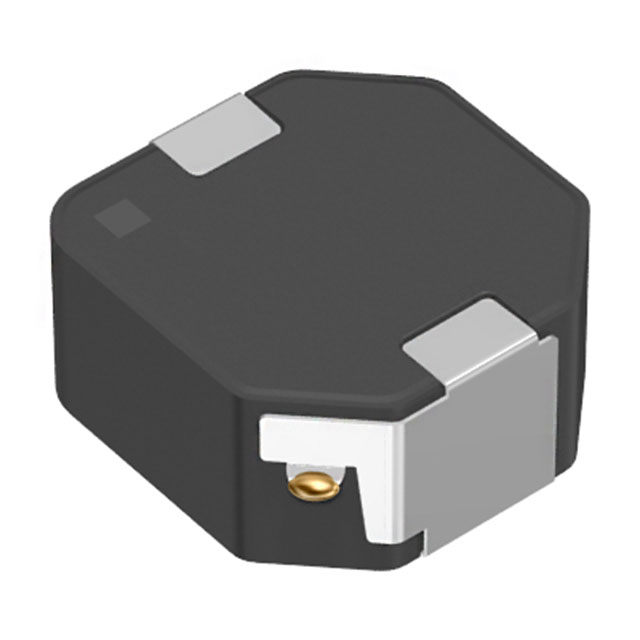

SPM12565V Series

Catalog

POW INDUCTOR, AEC-Q200, 10UH, SHLD, 22.7A ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Current - Saturation (Isat)	Ratings	Inductance	Type	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Current Rating (Amps)	Material - Core	Inductance Frequency - Test
TDK Corporation SPM12565VT-100M-D	155 C	-55 C	Surface Mount	17 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	16.7 A	AEC-Q200	10 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	9 A	Metal Composite	100 kHz
TDK Corporation SPM12565VT-220M-D	155 C	-55 C	Surface Mount	31 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	10.4 A	AEC-Q200	22 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	6.9 A	Metal Composite	100 kHz
TDK Corporation SPM12565VT-1R5M-D	155 C	-55 C	Surface Mount	2.8 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	32.8 A	AEC-Q200	1.5 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	22.3 A	Metal Composite	100 kHz
TDK Corporation SPM12565VT-2R2M-D	155 C	-55 C	Surface Mount		13 mm	0.512 "	0.492 "	12.5 mm	1256	32.8 A	AEC-Q200	2.2 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	20.2 A	Metal Composite	100 kHz
TDK Corporation SPM12565VT-4R7M-D	155 C	-55 C	Surface Mount	7.1 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	22.2 A	AEC-Q200	4.7 ÁH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	14 A	Metal Composite	100 kHz
TDK Corporation SPM12565VT-6R8M-D	155 C	-55 C	Surface Mount	10.3 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	20.9 A	AEC-Q200	6.8 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	11.6 A	Metal Composite	100 kHz

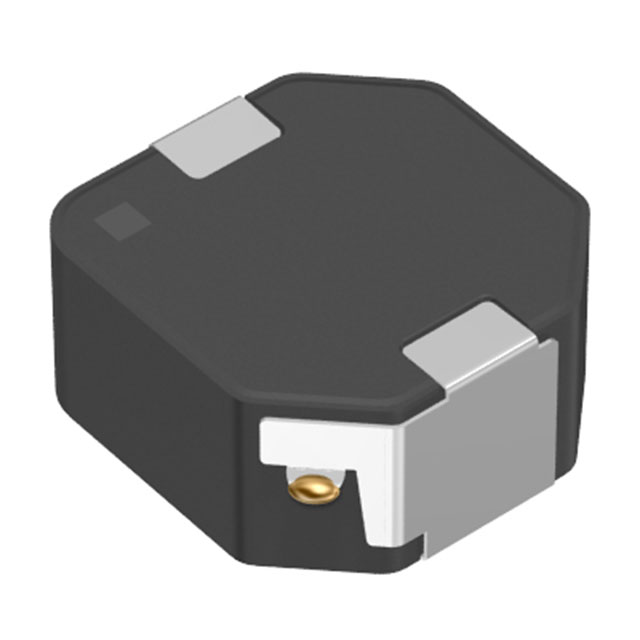

TDK Corporation SPM12565VT-3R3M-D	155 C	-55 C	Surface Mount	4.9 mOhm	13 mm	0.512 "	0.492 "	12.5 mm	1256	25.5 A	AEC-Q200	3.3 µH	Drum Core Wirewound	Nonstandard	20 %	6.5 mm	0.256 in	Shielded	16.8 A	Metal Composite	100 kHz
