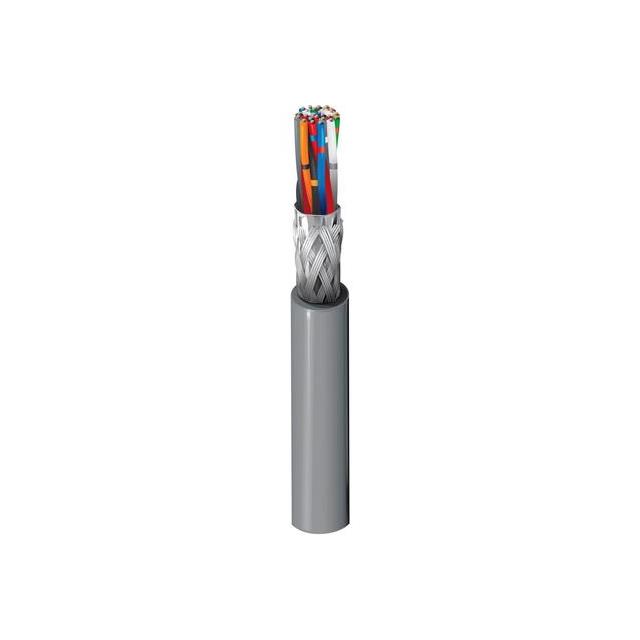

8142 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 25COND 28AWG
| Part | Shield Material | Shield Coverage | Cable Type | Ratings | Jacket Color | Features | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Length | Length | Conductor Insulation | Wire Gauge | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Multi-Pair | UL Style 2919 | Chrome | Drain Wire | Poly-Vinyl Chloride (PVC) | 0.389 in | 9.88 mm | 0.035 in | 0.889 mm | Copper Tinned | 80 °C | -30 ░C | 7 | 36 AWG | Braid Foil | 152.4 m | 500 ft | Foam Polyethylene (FPE) | 28 AWG | 25 |
