09100032 Series

Manufacturer: HARTING

Catalog

1A 3+PE FEM SCREW INSERT LLEVER

Part	Contact Material	Housing Material	Contact Finish	Material Flammability Rating	Color	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Size	Number of Positions	Connector Type	Gender	Termination Style

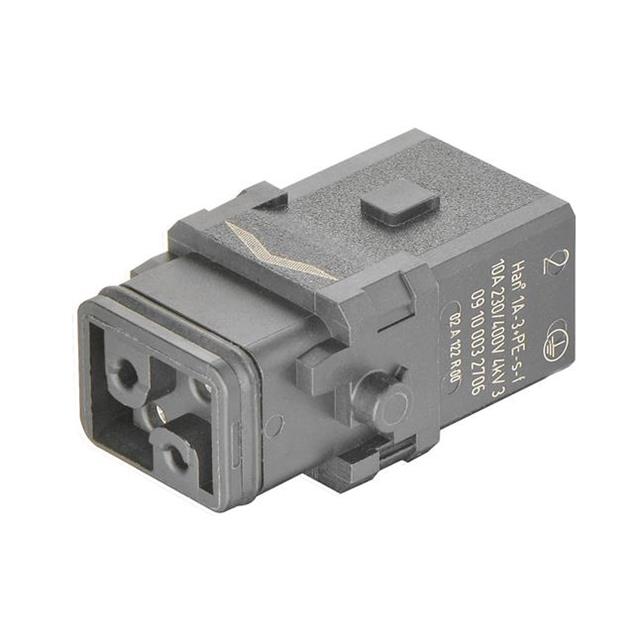

HARTING 09100032706	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Female	Screw

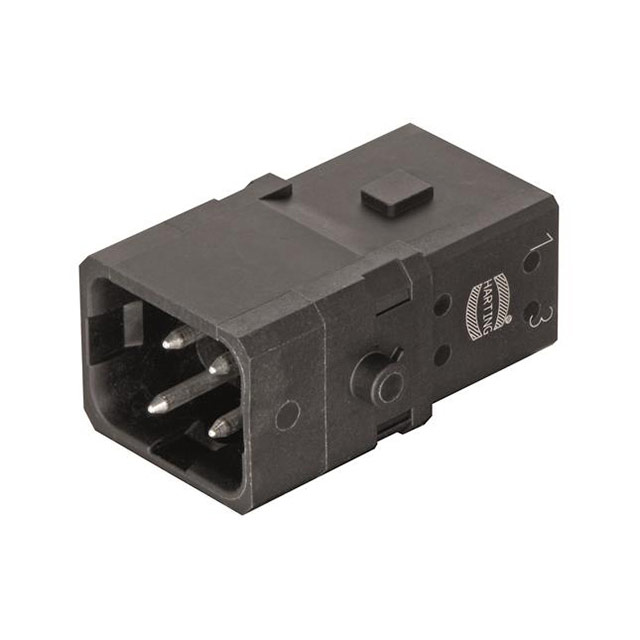

HARTING 09100032605	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Male	Screw

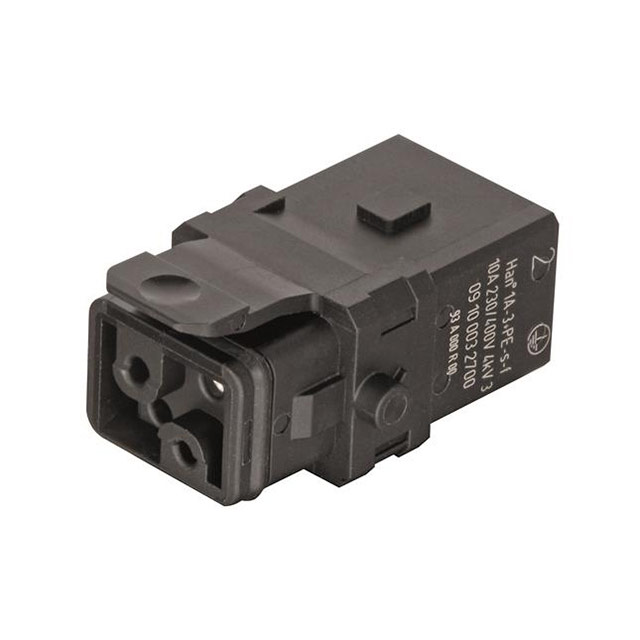

HARTING 09100032700	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Female	Screw

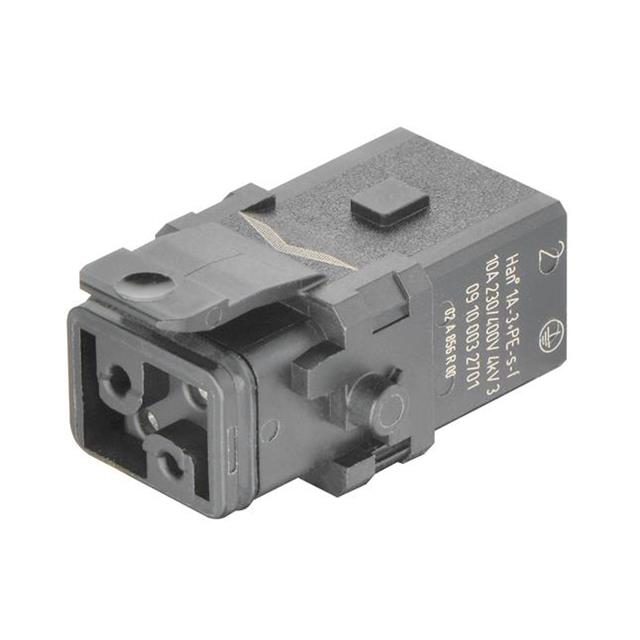

HARTING 09100032701	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Female	Screw

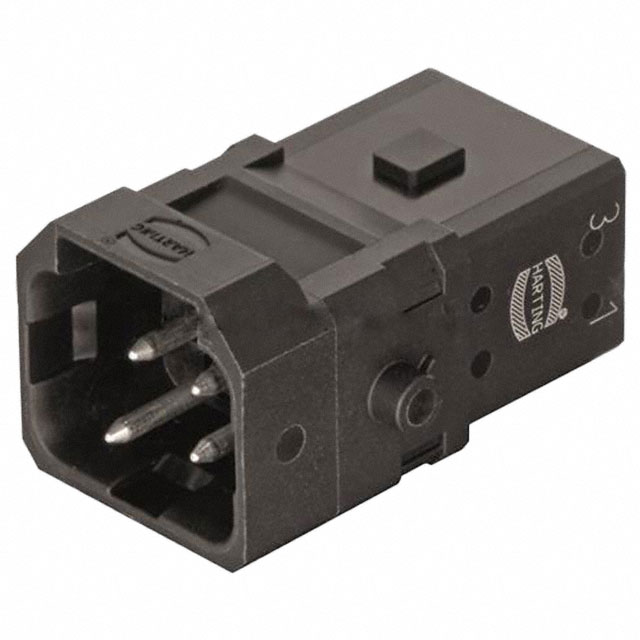

HARTING 09100032600	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Male	Screw

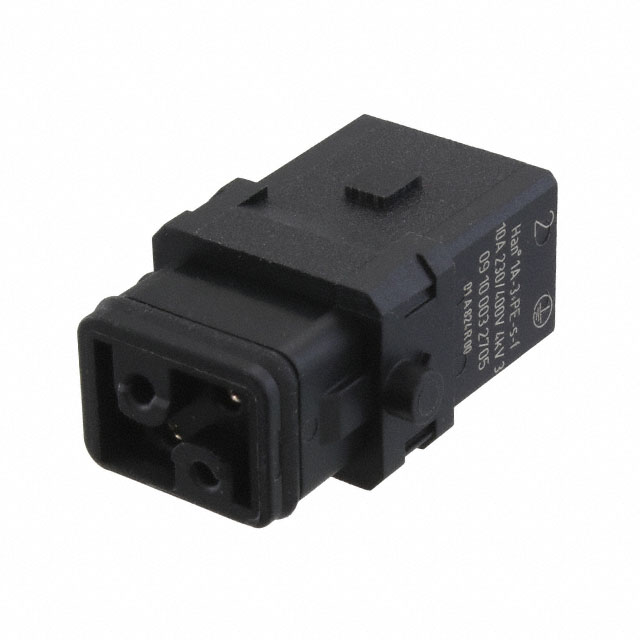

HARTING 09100032705	Copper Alloy	Polyamide (PA) Nylon	Silver	UL94 V-0	Black	10 A	400 V	-30 ░C	90 °C	1A	3+Ground	Insert	Female	Screw
