AMC80 Series

Low power local temp sensor with fan speed and power supply voltage monitor

Catalog

Low power local temp sensor with fan speed and power supply voltage monitor

Part	Primary Attributes	Supplied Contents	Contents	Utilized IC / Part	Secondary Attributes	Type	Output Type	Supplier Device Package	Accuracy	Output Alarm	Topology	Function	Package / Case	Package / Case	Mounting Type	Output Fan	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Sensing Temperature [Max]	Sensing Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]

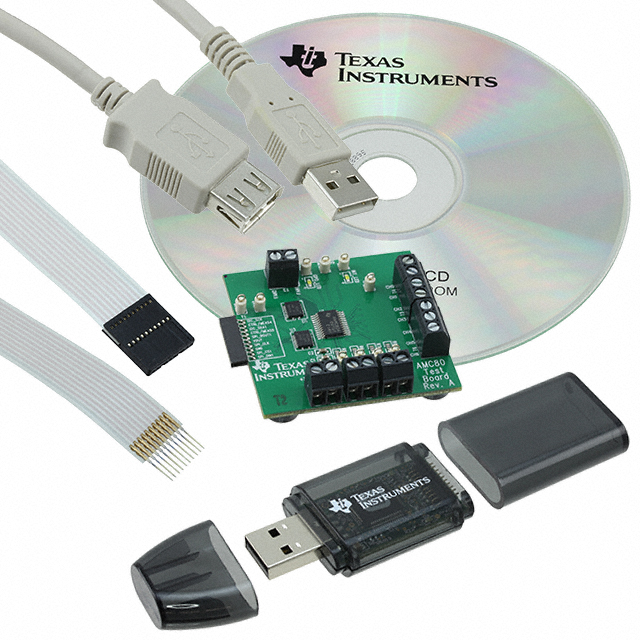

Texas Instruments AMC80EVM	Fan Control Temperature Sensing	Board(s) Cable(s)	Board(s) Cable(s)	AMC80	I2C Interface(s)	Power Management
Texas Instruments AMC80AIPWR							2-Wire SMBus	24-TSSOP	3 °C		ADC (Sigma Delta) Comparator Register Bank	Hardware Monitor	24-TSSOP	0.173 in 4.4 mm	Surface Mount		5.5 V	3 V	Internal and External	125 °C	-40 °C	125 °C	-40 °C

Catalog

Low power local temp sensor with fan speed and power supply voltage monitor

Key Features

• 10-Bit ADC with Seven Analog InputsFan-Speed Monitoring InputsInput Range/Resolution:Default: 2.56 V/2.5 mVProgrammable: VDD/6 mVChassis Intrusion Detection InputInterrupt Alarms:Upper Over-LimitLower Under-LimitInterrupt Status Register Input for External Temperature SensorsShutdown ModeProgrammableRST_OUT/OSPin Compatible with LM96080 and LM80Package: 24-Pin TSSOP10-Bit ADC with Seven Analog InputsFan-Speed Monitoring InputsInput Range/Resolution:Default: 2.56 V/2.5 mVProgrammable: VDD/6 mVChassis Intrusion Detection InputInterrupt Alarms:Upper Over-LimitLower Under-LimitInterrupt Status Register Input for External Temperature SensorsShutdown ModeProgrammableRST_OUT/OSPin Compatible with LM96080 and LM80Package: 24-Pin TSSOP

Description

The AMC80 is a system hardware monitoring and control circuit that includes a seven-channel, 10-bit analog-to-digital converter (ADC), two programmable fan-speed monitors, and a two-wire interface. The AMC80 also includes programmable upper over-limit and lower under-limit alarms that activate when the programmed limits are exceeded. The AMC80 can interface with both linear and digital temperature sensors. The 2.5-mV least significant bit (LSB) and 2.56-V input range can accept inputs from a linear sensor such as the TMP20. TheBTIpin is used as an input from a digital sensor such as the TMP75. The AMC80 operates from a 3-V to 5.5-V supply voltage, has low supply current, and can be configured using a two-wire interface, thus making it ideal for a wide range of applications. The AMC80 is available in a 24-lead TSSOP package and is fully specified over the –40°C to +125°C temperature range. The AMC80 is a system hardware monitoring and control circuit that includes a seven-channel, 10-bit analog-to-digital converter (ADC), two programmable fan-speed monitors, and a two-wire interface. The AMC80 also includes programmable upper over-limit and lower under-limit alarms that activate when the programmed limits are exceeded. The AMC80 can interface with both linear and digital temperature sensors. The 2.5-mV least significant bit (LSB) and 2.56-V input range can accept inputs from a linear sensor such as the TMP20. TheBTIpin is used as an input from a digital sensor such as the TMP75. The AMC80 operates from a 3-V to 5.5-V supply voltage, has low supply current, and can be configured using a two-wire interface, thus making it ideal for a wide range of applications. The AMC80 is available in a 24-lead TSSOP package and is fully specified over the –40°C to +125°C temperature range.
