CWSC Series
Manufacturer: NKK Switches
Beta
⌘K

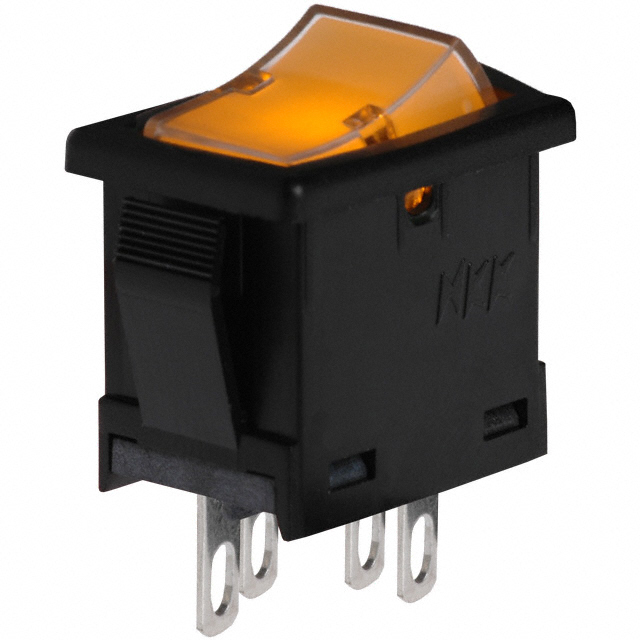

ROCKER SWITCHES SPST ON-NONE-OFF AMB
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Actuator Type | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Switch Function | Current Rating (Amps) | Actuator Marking | Mounting Type | Illumination Voltage (Nominal) | Approval Agency | Features | Voltage Rating - AC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | 12.9 mm | 19.2 mm | Clear | Concave (Curved) - Illuminated | Amber LED | 50 °C | -10 °C | SPST | On-Off | 9 A | No Marking | Panel Mount Snap-In | 2 VDC | UL | Audible Click | 125 V | Quick Connect - 0.110" (2.8mm) |
